Guide Piece

Removing

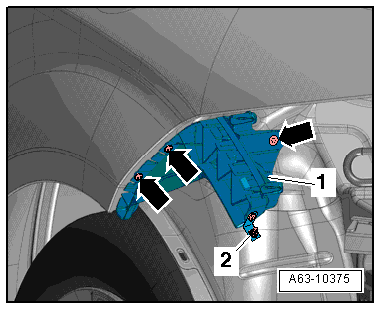

Fig 1: Identifying Guide Piece

Courtesy of AUDI OF AMERICA, LLC

-- Remove bumper. Refer to REAR BUMPER .

-- Remove the screws -arrows- and nuts -2-.

-- Remove guide piece -1-.

Installation

Fig 2: Tightening Torque And Sequence For Guide Piece

Courtesy of AUDI OF AMERICA, LLC

• For the correct tightening specifications, refer to Figure.

Install in reverse order of removal. Note the following:

-- Tighten the screws and nuts in the following sequence: -1 through 4-.

-- Install the bumper. Refer to REAR BUMPER .
