Front Exhaust Pipe With Catalytic Converters And Front Muffler

Removing

-- Remove the engine cover -arrows-.

Fig 1: Removing Engine Cover
GWWA10-10990Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and air guide.

Fig 2: Identifying Bolts -Arrows- And Air Guide
GWWA10-10602Courtesy of AUDI OF AMERICA, LLC

-- Remove both the lower air guide and the air guide hose.

-- Disconnect the connector -1- from the Mass Airflow (MAF) sensor -G70-.

Fig 3: Air Flow Housing, Electrical Connector And Guide Hose
GWWA10-10760Courtesy of AUDI OF AMERICA, LLC

-- Remove the air guide hose -2-.

-- Remove the bolt -4- and the air filter housing.

NOTE:

Ignore -3-.

-- Remove the air guide pipe bolt -arrow-.

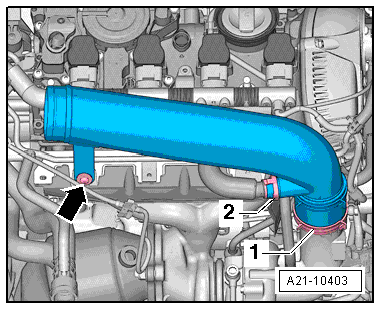

Fig 4: Locating Air Guide Pipe Bolt
GWWA21-10403Courtesy of AUDI OF AMERICA, LLC

-- Remove the air guide pipe; to do this, loosen the hose clamp -1-.

-- Press the release buttons and remove the air guide hose -2-.

-- Disconnect the electrical wire connector -arrow- for the Heated Oxygen Sensor (HO2S) -G39- and Oxygen Sensor (O2S) heater -Z19- and free up the wire.

Fig 5: Disconnecting Heated Oxygen Sensor (HO2S) G39 Harness Connector
GWWA26-10134Courtesy of AUDI OF AMERICA, LLC

-- Remove the accessible nuts -arrows- for the front exhaust pipe/turbocharger from above.

Fig 6: Front Exhaust Pipe/Turbocharger Nuts
GWWA26-10456Courtesy of AUDI OF AMERICA, LLC

AWD:

Fig 7: Driveshaft Flexible Disc
GWWA10-10247Courtesy of AUDI OF AMERICA, LLC

-- Mark position of flexible disc to bevel box flange for reinstallation.

-- Remove the driveshaft flexible disc bolts -arrows- from the bevel box while counter holding at the triangular flange with a lever.

Fig 8: Identifying Driveshaft Flange Shaft Seal
GWWV39-1817Courtesy of AUDI OF AMERICA, LLC
CAUTION:

The shaft seal -arrow- in the driveshaft flange could be damaged.

  • Press driveshaft horizontally as far back and to right side of vehicle as possible.

All Vehicles:

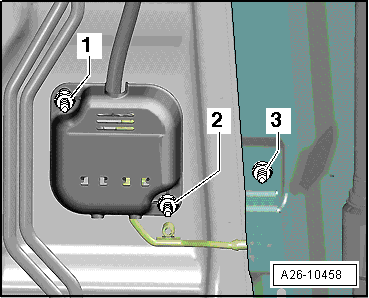

Fig 9: Electrical Connector For The Oxygen Sensor (O2S) After Three Way Catalytic Converter (TWC) -G130- And Heater For Oxygen Sensor (O2S) 1 After Catalytic Converter -Z29- (Under Cover)
GWWA26-10458Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1 and 2- on the bracket for the oxygen sensor electrical connector under the underbody. Remove the cover.

-- Remove the bolt -3- and free up the electrical wire to the oxygen sensor.

-- Remove the connector coupling -arrow- from the bracket.

Fig 10: Electrical Connector -arrow-
GWWA26-10459Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the electrical connector to the Oxygen Sensor (O2S) after Three Way Catalytic Converter (TWC) -G130-.

-- Remove the remaining nuts -arrows- for the front exhaust pipe/turbocharger from below.

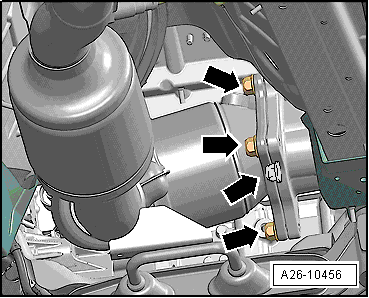

Fig 11: Front Exhaust Pipe/Turbocharger Nuts
GWWA26-10456Courtesy of AUDI OF AMERICA, LLC

-- Remove exhaust system bracket and cross brace -arrows-.

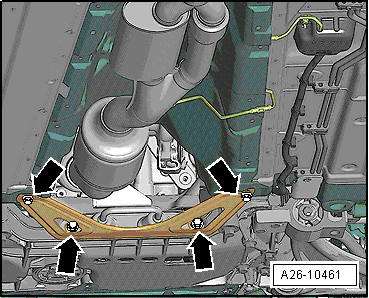

Fig 12: Identifying Crossbrace Bolts -Arrows-
GWWA26-10461Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Risk of damaging decoupling elements.

  • Do not bend decoupling elements in the front exhaust pipe more than 10°.

-- Disconnect the exhaust system at the clamping sleeve -arrows-.

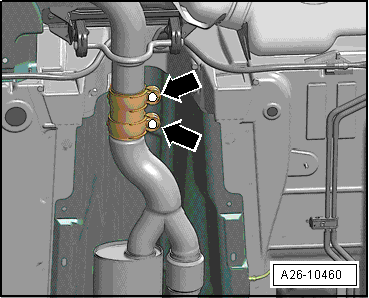

Fig 13: Clamping Sleeve -Arrows-
GWWA26-10460Courtesy of AUDI OF AMERICA, LLC

-- Remove the front exhaust pipe with the catalytic converter and front muffler.

Installing

Installation is carried out in the reverse order while noting the following:

NOTE:

Replace gaskets and self-locking nuts.

-- Install driveshaft Removal and Installation .

-- Install exhaust system free of stress, refer to EXHAUST SYSTEM, ALIGNING .
