Suppressor -C24-

Observe notes on contact corrosion. Refer to CONTACT CORROSION .

Removing

Fig 1: Identifying E-Box Cover And Latches

Courtesy of AUDI OF AMERICA, LLC

-- Remove engine compartment E-box cover by sliding latch in -direction of arrow-.

-- Remove Suppressor -item 1- from relay and fuse panel -arrow-.

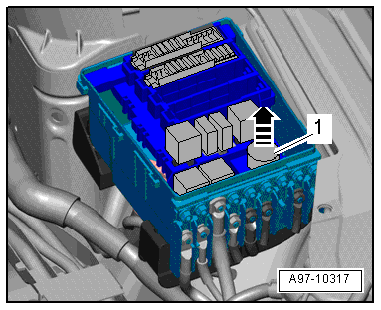

Fig 2: Remove Suppressor From Relay And Fuse Panel

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector.

Installing

Install in reverse order.
