Stone Guard

Removing

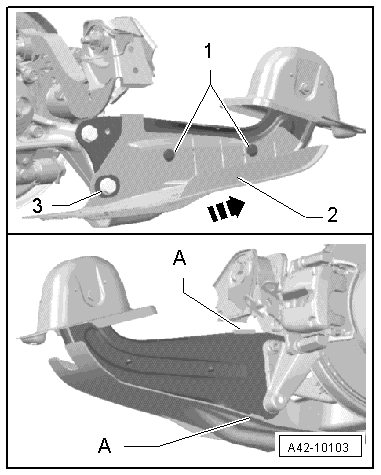

Fig 1: Identifying Stone Deflector
GWWA42-10103Courtesy of AUDI OF AMERICA, LLC

-- Remove expanding rivet -1-

-- Slide stone deflector -2- in -direction of arrow- until it makes contact with this bolt -3-.

-- Unclip retaining tabs -A- and remove stone deflector -2-.

Installing

Fig 2: Identifying Stone Deflector
GWWA42-10103Courtesy of AUDI OF AMERICA, LLC

Installation is the reverse of removal, with special attention to the following:

CAUTION:
  • Retaining tabs -A- must not be damaged when removing and installing.
  • The component must be replaced if damaged.
