Diagonal Braces

Special tools and workshop equipment required

• Torque Wrench V.A.G 1331
• Torque Wrench V.A.G 1332

Removing

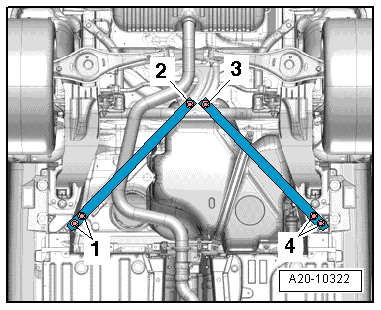

Fig 1: Identifying Pendulum Support And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -1- through -4- and remove diagonal braces.

Installing

Installation is performed in the reverse order of removal. Observe the following when doing so:

Tightening specifications, refer to SUBFRAME, DIAGONAL BRACE, LOWER TRANSVERSE LINK, UPPER TRANSVERSE LINK, TIE ROD AND LEVEL CONTROL SYSTEM SENSOR ASSEMBLY OVERVIEW .
