Disassembling Outer CV Joint

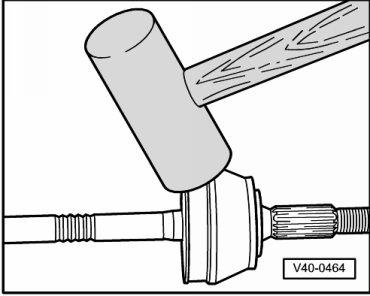

Fig 1: Driving Outer Constant Velocity Joint Off Of Drive Axle Through Firm Blows With Plastic Hammer
GWWV40-0464Courtesy of AUDI OF AMERICA, LLC

-- Drive constant velocity joint off drive shaft by hitting forcefully with a light alloy hammer.
