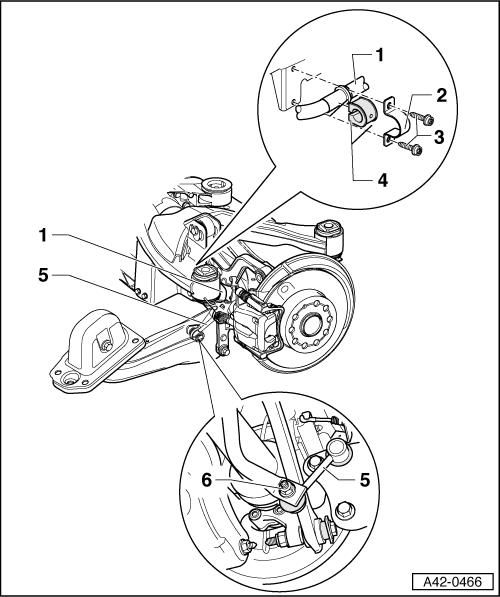

Stabilizer Bar Assembly Overview
- Stabilizer Bar
- Be aware of the various suspension versions. Refer to PR NUMBER EXPLANATIONS .
- Removing and installing, refer to STABILIZER BAR .
- Clamp
- Bolt
- 25 Nm + 90° turn
- Always replace after removing it.
- Rubber Mount
- Replace mounts always on both sides of vehicle.
- Coupling Rod
- Connects stabilizer to trailing arm/wheel bearing housing.
- Nut
- 40 Nm
