Filling Joints With Grease
| Outer Joint | |
|---|---|
| Total quantity | 120 g |
| in joint | 80 g |
| in protective joint boot | 40 g |
| Tripod joint | |
| Total quantity | 140 g |
| in joint | 70 g |
| in protective joint boot | 70 g |
NOTE:
Grease joint again when replacing protective joint boot.

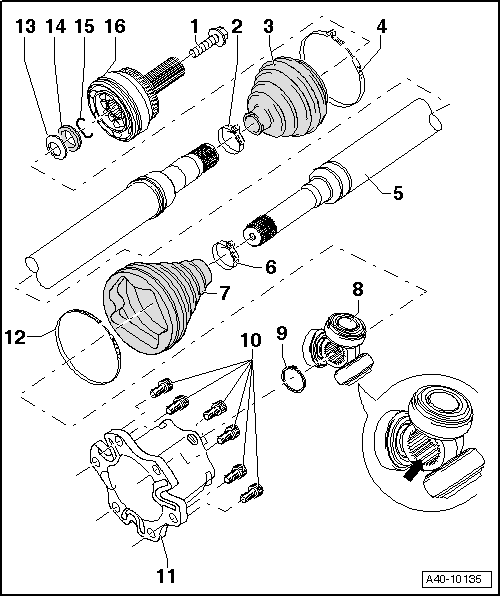

- 1 - Bolt
- Hex bolt: 200 Nm + 180° turn. Refer to HEX BOLT BETWEEN DRIVE AXLE AND WHEEL HUB, LOOSENING AND TIGHTENING .
- Twelve point bolt: 70 Nm + 90° turn. Refer to 12-POINT BOLT BETWEEN DRIVE AXLE AND WHEEL HUB, LOOSENING AND TIGHTENING .
- Different versions. Allocation.
- Always replace after removing it.
- Before installing, clean the threads in the constant velocity joint with a tap.
- 2 - Clamp
- Replace.
- Tensioning, refer to LARGE CLAMPS FOR RUBBER PROTECTIVE JOINT BOOTS, TENSIONING .
- 3 - CV Boot
- Check for tears and scuffing.
- 4 - Clamp
- Replace.
- Tensioning, refer to LARGE CLAMPS FOR RUBBER PROTECTIVE JOINT BOOTS, TENSIONING .
- 5 - Profile Shaft
- 6 - Clamp
- Replace
- Tensioning, refer to LARGE CLAMPS FOR RUBBER PROTECTIVE JOINT BOOTS, TENSIONING .
- 7 - Protective Joint Boot for Triple Roller Joint
- Check for tears and scuffing.
- 8 - Triple Roller Star with Rollers
- Chamfer -arrow- faces splines of drive axle.
- When installing triple roller star on axle shaft, splines on axle shaft must be lightly coated with grease used in joint.
- 9 - Securing Ring
- Replace.
- 10 - Bolt
- Pre-tightening specification: 10 Nm and diagonally.
- Tightening specification M8: 40 Nm and diagonally.
- Tightening specification M10: 70 Nm and diagonally.
- Always replace after removing it.
- 11 - Bolted Joint
- 12 - Clamp
- Replace.
- Tensioning, refer to DRIVE AXLE WITH TRIPLE ROLLER JOINT AAR 2600I, DISASSEMBLY AND ASSEMBLY .
- 13 - Dished Washer
- Installed position, refer to DRIVE AXLE WITH TRIPLE ROLLER JOINT AAR 2600I, DISASSEMBLY AND ASSEMBLY .
- 14 - Spacer Ring (Plastic)
- Installed position, refer to DRIVE AXLE WITH TRIPLE ROLLER JOINT AAR 2600I, DISASSEMBLY AND ASSEMBLY .
- 15 - Securing Ring
- Replace.
- Insert in shaft groove.
- 16 - Outer Constant Velocity Joint
- Replace only as complete unit.
- Removing, refer to DRIVE AXLE WITH TRIPLE ROLLER JOINT AAR 2600I, DISASSEMBLY AND ASSEMBLY .
- Installing, refer to DRIVE AXLE WITH TRIPLE ROLLER JOINT AAR 2600I, DISASSEMBLY AND ASSEMBLY .
- Checking, refer to OUTER CV JOINT, CHECKING .
- Grease table, refer to DRIVE AXLE WITH TRIPLE ROLLER JOINT AAR 2600I, DISASSEMBLY AND ASSEMBLY .
- When installing joint on axle shaft, splines on axle shaft must be lightly coated with grease used in joint.
