Parking Brake Cable Guide Tube

Removing

-- Remove parking brake cable. Refer to PARKING BRAKE CABLE .

-- Unclip guide tubes from vehicle floor.

-- Remove guide tubes -2- from below from vehicle shaft.

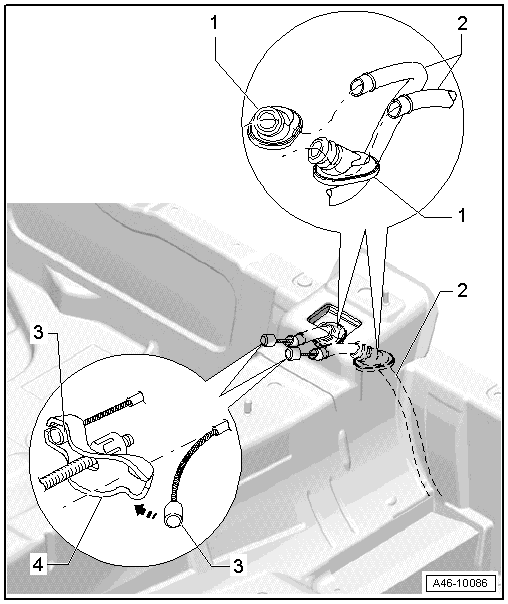

Fig 1: Removing Guide Tubes

Courtesy of AUDI OF AMERICA, LLC

-- When doing so, ensure rubber grommets -1- are not damaged.

Installing

-- Slide guide tubes -2- from below through vehicle shaft into vehicle interior.

-- When doing so, ensure rubber grommets -1- are not damaged.

-- Clip guide tubes into mounts on vehicle floor.
