License Plate Bracket Assembly Overview

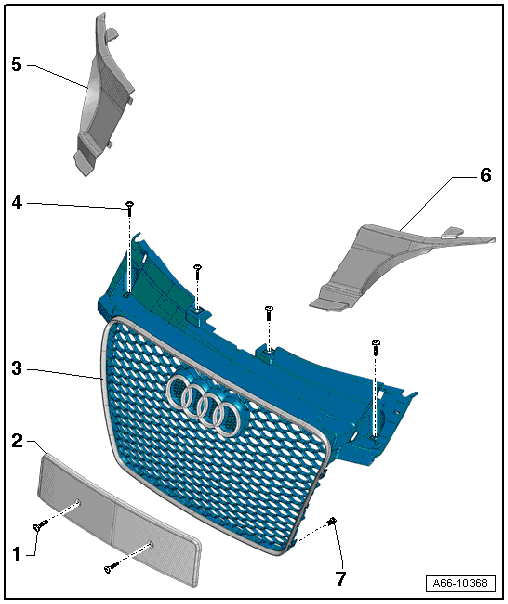

Fig 1: Identifying License Plate Bracket Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Quantity: 2
- 0.9 Nm
License plate bracket
- Versions for specific countries:
- Removing and Installing, refer to LICENSE PLATE BRACKET
Radiator Grille
- Removing and Installing, refer to RADIATOR GRILLE
Bolt
- Quantity: 4
- Tightening Specifications and Sequence Fig 2
Right cover
- Removing and Installing, refer to RADIATOR GRILLE COVER
Left cover
- Removing and Installing, refer to RADIATOR GRILLE COVER
Bolt
- Quantity: 8
- 2 Nm

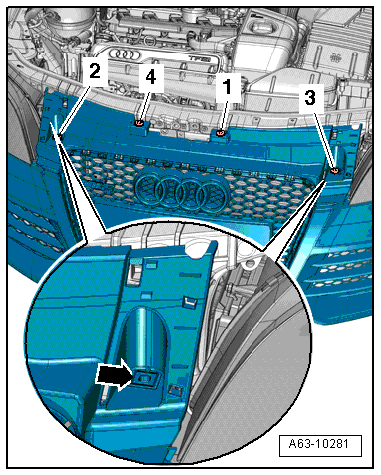

Fig 2: Tightening Torques And Sequence For Upper Bumper

Courtesy of AUDI OF AMERICA, LLC
