Bench Seat Cover, Separating From Upholstery

Removing

-- Remove cover with upholstery. Refer to BENCH SEAT COVER AND UPHOLSTERY .

-- Remove the cover -1- from the upholstery -2- as far as possible.

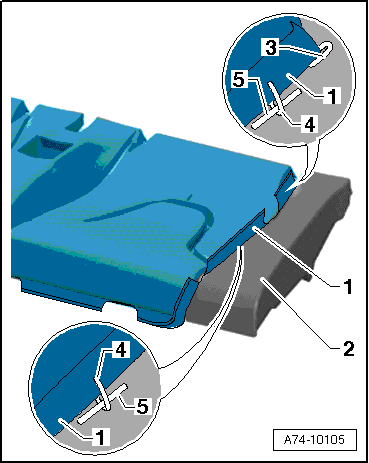

Fig 1: Identifying Cover Removed From Upholstery As Far As Possible

Courtesy of AUDI OF AMERICA, LLC

3 - retaining wire slid into cover

5 - wire in foam in upholstery

-- Cut through clips -4- with pliers.

-- Remove the cover -1- from cushion -2-.

Installation

Install in reverse order of removal. Note the following:

-- Use new upholstery clips.

-- Close wire clips with upholstery clip pliers V.A.G 1634.

-- Place the upholstery clips in their original locations.
