Backrest Cover, Separating From Upholstery

Special tools and workshop equipment required

• Trim removal wedge 3409
  Fig 1: Identifying Trim Removal Wedge 3409

  Courtesy of AUDI OF AMERICA, LLC

Removing

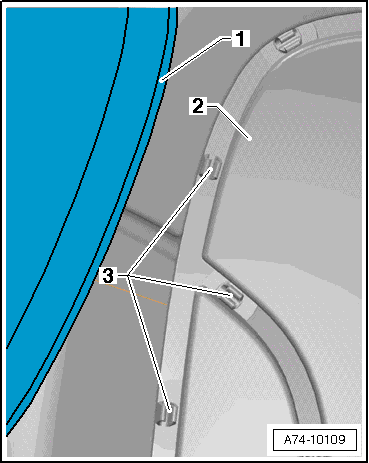

Fig 2: Unclipping Cover Retaining Strip In Upholstery Foam

Courtesy of AUDI OF AMERICA, LLC

-- Unclip cover retaining strip -1- from clips -3- in upholstery foam -2-.

-- Use Trim Removal Wedge 3409 to unclip.

-- Remove the cover -1- from cushion -2-.

Installation

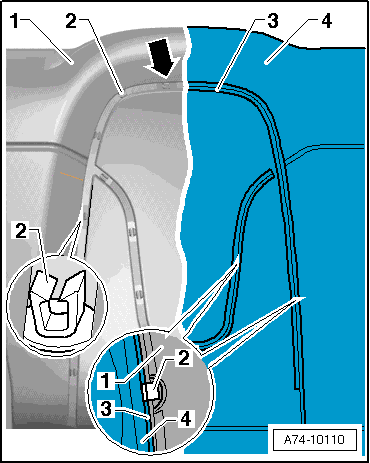

Fig 3: Installing In Reverse Order Of Removal

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Align cover -4- to upholstery -1-.

-- Begin clipping cover -4- to upholstery -1- in upper area -arrow-.

-- To clip, press retaining strip -3- into clip -2-.

-- Make sure the clip -2- and the retainer strip -3- are attached correctly.
