Bench Seat Cover And Upholstery Assembly Overview

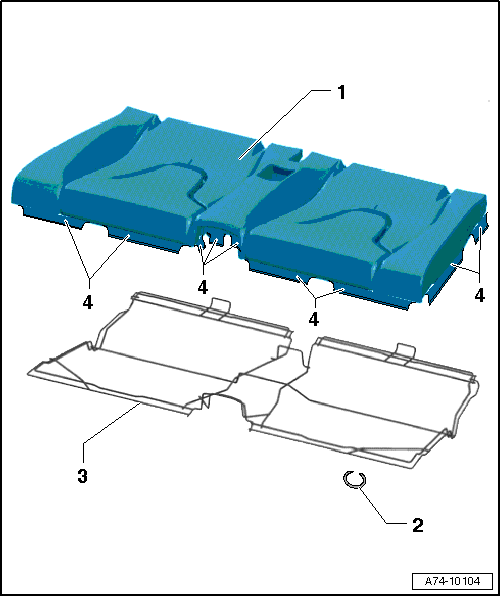

Fig 1: Identifying Bench Seat Cover And Upholstery Assembly
GWWA74-10104Courtesy of AUDI OF AMERICA, LLC
  1. Cover with upholstery
  2. Cushion clamp
    • Quantity: 48
    • Replacing
    • Install in same location as before removal
      WARNING:

      Ends of upholstery clips must face in direction of upholstery after installing and must be bent correctly. Otherwise, there is a risk of injury.

  3. Seat frame
  4. Molding
    • Sewn into cover
