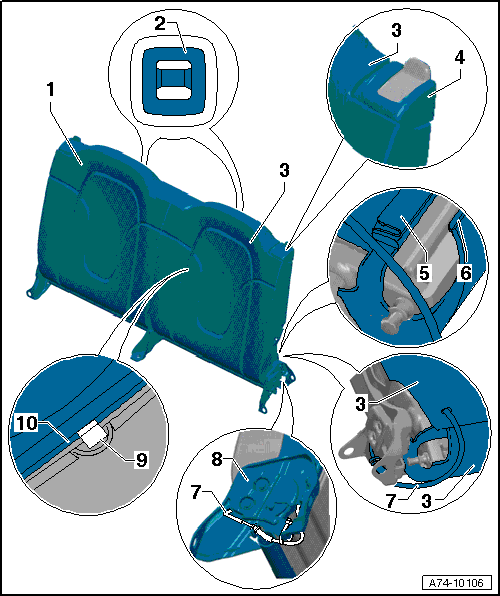

Backrest Cover And Upholstery Assembly Overview
- Cover with right upholstery
- Removing and Installing, refer to BACKREST COVER AND UPHOLSTERY
- Top Tether
- Versions for specific countries:
- Removing and Installing, refer to TOP TETHER CHILD SEAT ANCHORAGES ASSEMBLY OVERVIEW
- Cover with left upholstery
- Removing and Installing, refer to BACKREST COVER AND UPHOLSTERY
- Trim
- For release
- Removing and Installing, refer to LEFT OR RIGHT RELEASE ASSEMBLY OVERVIEW
- Retaining strip
- Sewn onto front part of cover
- Retaining strip
- Sewn onto rear part of cover
- Release cable
- For release
- Fitting
- Clip
- In foam in upholstery
- Retaining strip
- Sewn into cover
