Seat Heating Element Assembly Overview

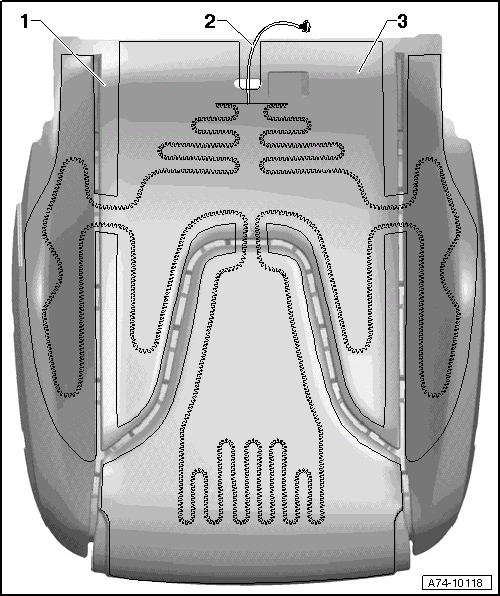

Fig 1: Identifying Seat Heating Element Assembly
GWWA74-10118Courtesy of AUDI OF AMERICA, LLC
  1. Cushion
    • For seat pan
  2. Wiring
    • Firmly connected to seat heating element
  3. Seat heating element
