Seat Height Adjuster Toothed Segment
Special tools and workshop equipment required
- Trim removal wedge 3409
Removing
- Follow all safety precautions when working on pyrotechnic components. Refer to RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
- Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.
-- Remove Driver Seat Height Adjustment Motor -V245- or Front Passenger's Seat Height Adjustment Motor -V246-. Refer to SEAT HEIGHT ADJUSTMENT MOTOR V245 AND V246 .
-- Using Trim Removal Wedge 3409, unclip plastic toothed segment -2- from fitting -1-.
Installation
-- Clip plastic toothed segment -2- into fitting -1-.

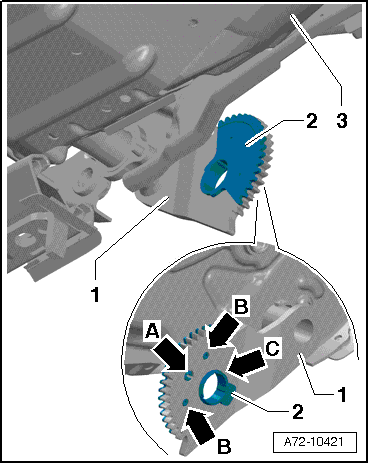

-- Make sure the clip -A- and plastic toothed segment collar -2- as well as locking pins -B arrows- are inserted correctly in holes on fitting -1-.
-- Make sure the plastic toothed segment -2- is clipped to fitting -1- correctly.
Plastic toothed segment collar -arrow C- must contact fitting -1- evenly.

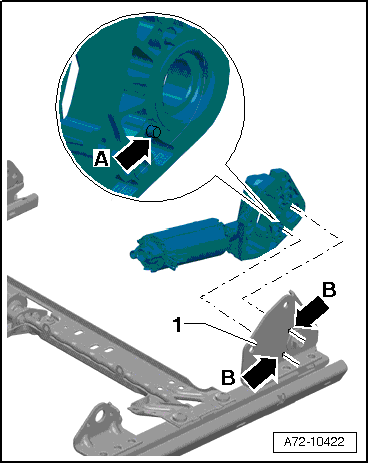

-- Make sure the locking pins -A arrows- are inserted correctly in holes -B arrows- on link plate -1-.
Installation is in reverse order of removal, noting the following:
- Follow all safety precautions when working on pyrotechnic components. Refer to RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
- Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.
Make sure the connectors are installed all the way in and are secure.
-- Switch on ignition.
Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.
-- Connect battery ground cable with ignition switched on. Refer to [For transmission(s) 02E] [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Removal and Installation .
-- If Airbag Malfunction Indicator Lamp (MIL) -K75- indicates a fault after installation, DTC memory must be checked, deleted and checked again.
