Parking Brake Handle Trim Assembly Overview

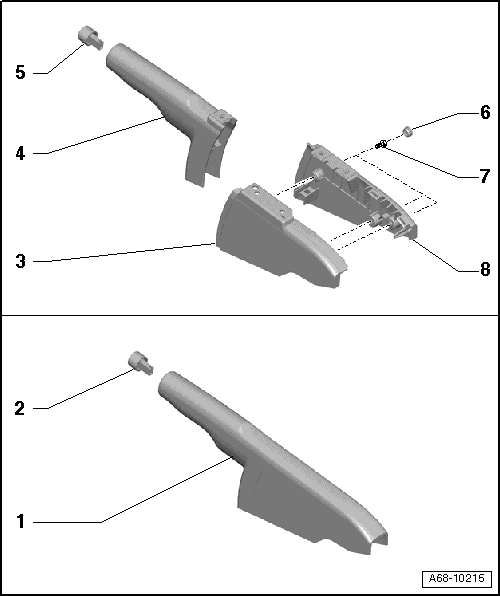

Fig 1: Parking Brake Handle Trim Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Parking Brake Handle Trim
- For vehicles without center armrest
- Removing and Installing, refer to PARKING BRAKE HANDLE TRIM, VEHICLES WITHOUT CENTER ARMREST
Push button
- Remove after removing parking brake handle trim
Left parking brake trim
- Vehicles with center armrest
- Removing and Installing, refer to LEFT AND RIGHT PARKING BRAKE TRIM, VEHICLES WITH CENTER ARMREST
Parking Brake Handle Trim
- Vehicles with center armrest
- Removing and Installing, refer to PARKING BRAKE HANDLE TRIM, VEHICLES WITH CENTER ARMREST
Push button
- Remove after removing parking brake handle trim
Cover
- Vehicles with center armrest
Bolt
- Vehicles with center armrest
- 2.5 Nm
- Quantity: 3
Right parking brake trim
- Vehicles with center armrest
- Removing and Installing, refer to LEFT AND RIGHT PARKING BRAKE TRIM, VEHICLES WITH CENTER ARMREST
