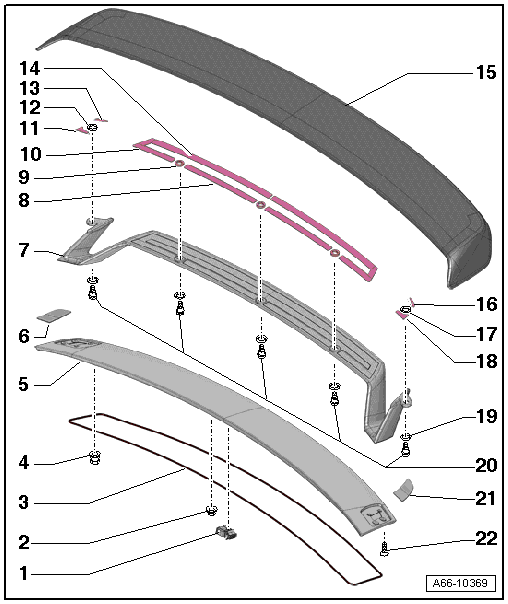

Rear Spoiler Assembly Overview
NOTE:
After painting, the spoiler of the TT RS is assembled from the components shown in the assembly overview.
The spoiler is not designed for disassembly.
- Connector housing
- Adhered to the spoiler base plate
- For bridging the extendable spoiler connector
- Nut
- Quantity: 9
- 2 Nm
- Sealing cord
- Replacing
- Secure to the spoiler lower part with instant adhesive AMV 195 KD 101
- Process the ends without a joint
- Nut
- Quantity: 2
- 2 Nm
- Spoiler base plate
- Removing and Installing, refer to SPOILER
- Assembly, refer to SPOILER, ASSEMBLING
- Right cover cap
- Secure with double-sided adhesive tape
- Spoiler center part
- Assembly, refer to SPOILER, ASSEMBLING
- Double-sided adhesive tape
- Short, straight
- Quantity: 2
- Double-sided adhesive tape
- Ring-shaped
- Quantity: 3
- Double-sided adhesive tape
- Angle piece
- Quantity: 2
- Double-sided adhesive tape
- Front
- Foil
- Transparent
- Double-sided adhesive tape
- Rear
- Double-sided adhesive tape
- Long, straight
- Quantity: 2
- Upper part of spoiler
- Assembly, refer to SPOILER, ASSEMBLING
- Double-sided adhesive tape
- Rear
- Foil
- Transparent
- Double-sided adhesive tape
- Front
- Foil
- Ring-shaped
- Transparent
- Quantity: 5
- Bolt
- With collar
- Quantity: 5
- 7 Nm
- Left cover cap
- Secure with double-sided adhesive tape
- Bolt
- Quantity: 4
- 3 Nm
