Rear Bumper Cover Strip And Bracket

Cover Strip

Removing

Fig 1: Identifying Rear Bumper Cover Strip And Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Unclip cover strip on upper bumper from retainers -arrows-.

Lower Bumper Threaded Connection

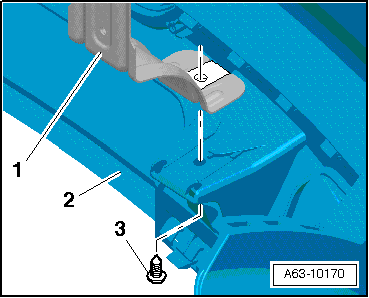

Fig 2: Identifying Lower Bumper Threaded Connection

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolt -3- from bracket -1- from bottom side of bumper.

Bracket

Removing

Fig 3: Identifying Rear Bumper Bracket

Courtesy of AUDI OF AMERICA, LLC

• Nut -2- = 4 Nm
