Outer Guide Piece

Removing

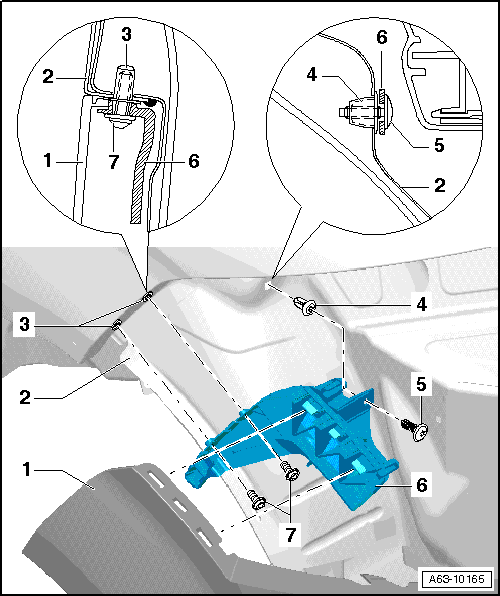

Fig 1: Identifying Outer Guide Piece

Courtesy of AUDI OF AMERICA, LLC

1. Rear Bumper
   • Removed
2. Side panel
3. Internally threaded pop rivet
   • Riveted into side panel.
4. Clip
5. Bolt
   • 2.5 Nm
6. Guide piece

   -- When installing, observe tightening sequence from bottom to top.

7. Bolt
   • 2.5 Nm
