Lower Cover

Removing

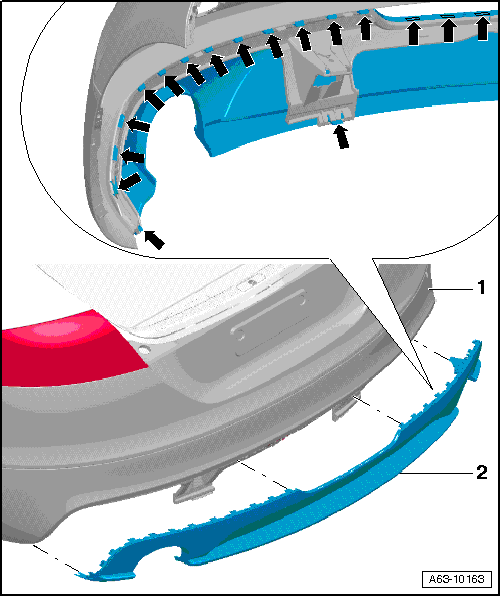

Fig 1: Lower Cover
GWWA63-10163Courtesy of AUDI OF AMERICA, LLC
  1. Rear Bumper
  2. Lower cover
    • To remove, bumper must not be removed.
    • Unclip from bumper in stages and remove toward rear.
