Inner Guide Piece

Removing

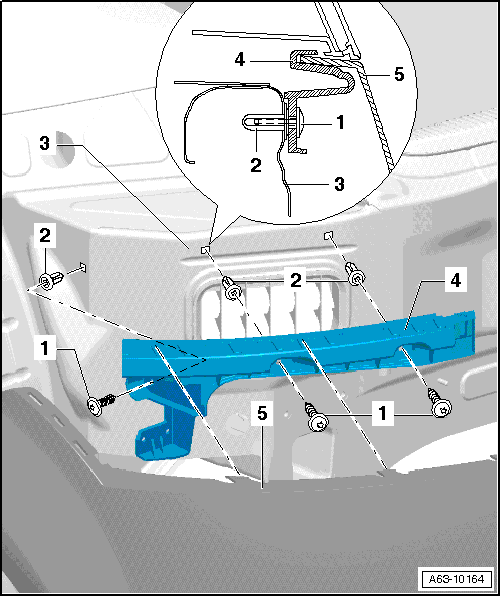

Fig 1: Identifying Inner Guide Piece

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 2.5 Nm
2. Clip
   • Slid into side panel.
3. Side panel
4. Inner guide piece

   -- When installing, observe tightening sequence from inside toward outside.

5. Rear Bumper
   • Removed
