Impact Member

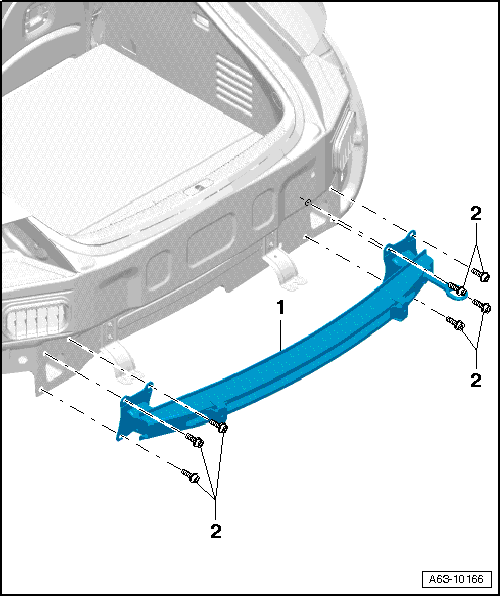

Fig 1: Impact Member
GWWA63-10166Courtesy of AUDI OF AMERICA, LLC
  1. Side impact member
    • Remove bolts -2- (quantity: 7)
  2. Bolt
    • 23 Nm
