Lower Bumper Bolting Points

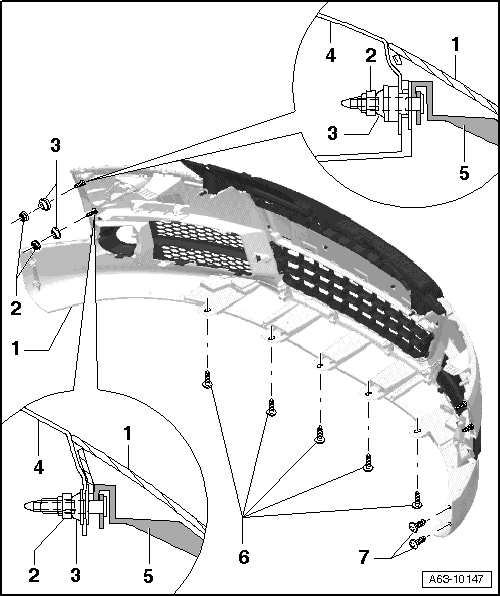

Fig 1: Identifying Lower Bumper Bolting Points
GWWA63-10147Courtesy of AUDI OF AMERICA, LLC
  1. Bumper
  2. Nut
    • Use T40078 to loosen or tighten nut.
    • 6.5 Nm
  3. Grommet
  4. Fender
  5. End plate
    • Part of bumper delivery package.
    • No replacement part
  6. Bolt
    • 2 Nm
    • Remove bolts on noise insulation.
  7. Bolt
    • 1.5 Nm
