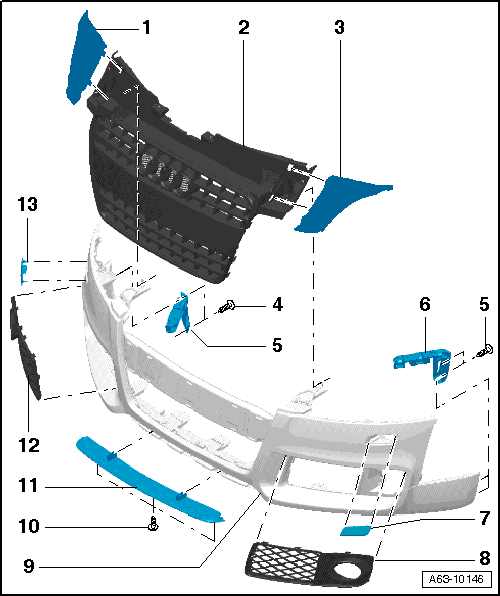

Front Bumper Assembly Overview
- Upper right bumper cover

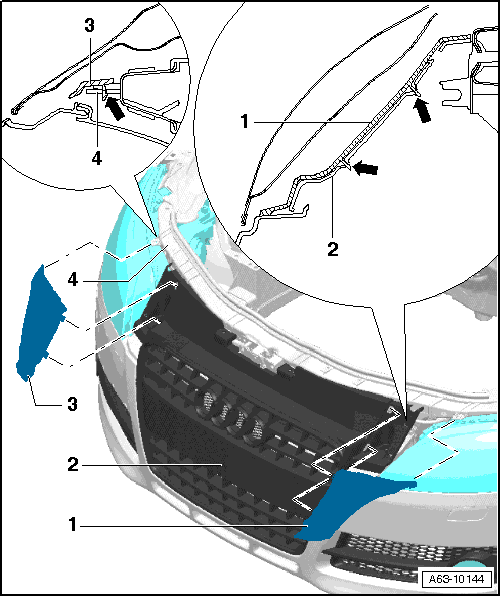

- Removing Figure.
- Radiator Grille
- Removing and installing, refer to RADIATOR GRILLE .
- Upper left bumper cover
- Removed.
- Bolt
- 1.5 Nm
- Right guide piece

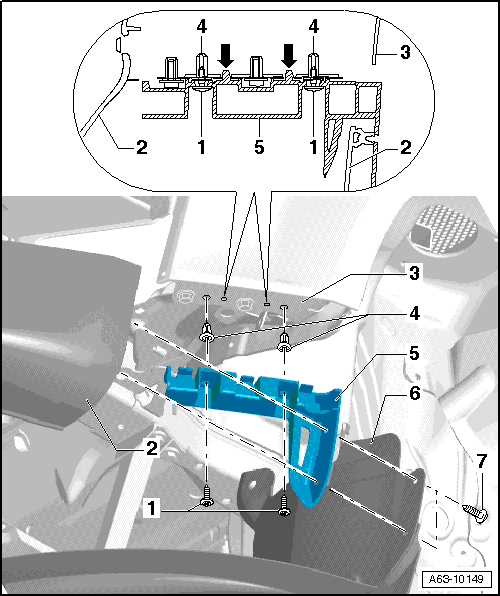

- Removing and installing, refer to Figure
- Left guide piece
- Headlamp washer system cover
- Air grille

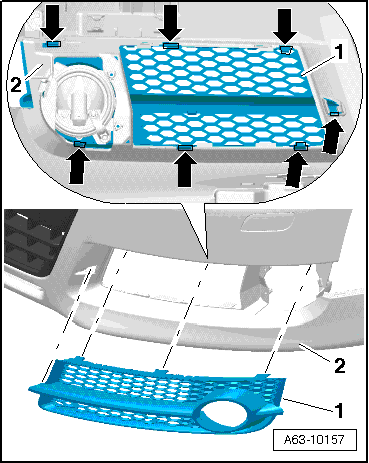

- Removing Figure
- Bumper
- Bolt
- 2 Nm
- Spoiler
- Special equipment
- Air grille
- Headlamp washer system cover
