Noise Insulation Frame: Removing

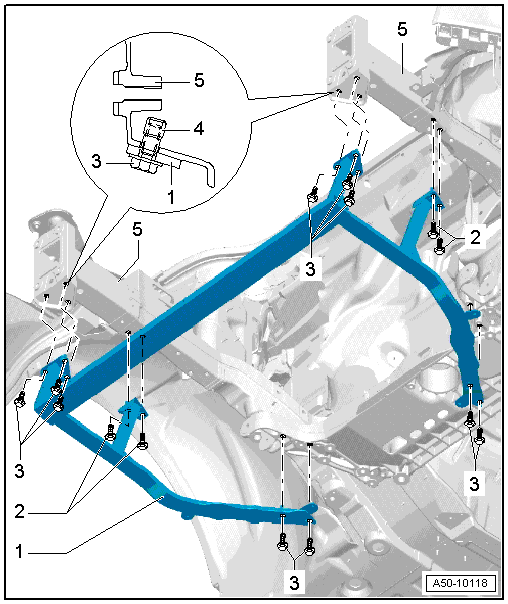

Fig 1: Identifying Noise Insulation Frame
GWWA50-10118Courtesy of AUDI OF AMERICA, LLC
  1. Frame
    • Noise insulation removed.
    • Remove bolts -2- and -3- and remove frame.
  2. Bolt
    • 23 Nm
  3. Bolt
    • 23 Nm
  4. Internally threaded pop rivet
  5. Longitudinal member
