Engine Mount Brace

Roadster

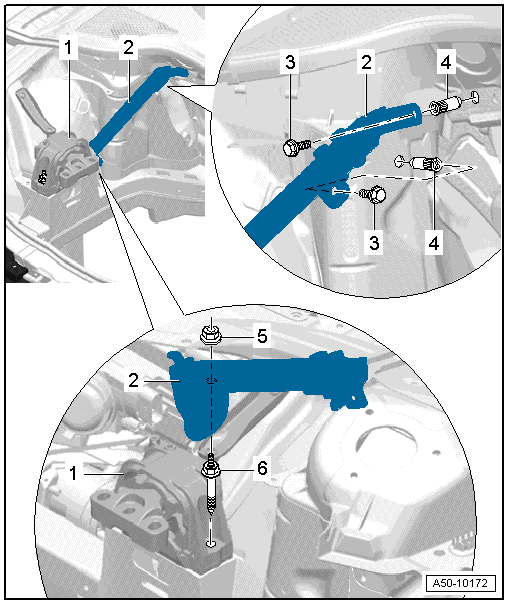

Fig 1: Identifying Engine Mount Brace

Courtesy of AUDI OF AMERICA, LLC

1. Engine mount

   Removal, refer to [For engine(s) CETA, CCTA] Specifications or to [For engine(s) CDMA] Specifications or to [For engine(s) CBRA] Specifications or to [For engine(s) BPY] Specifications

2. Engine mount brace
   • Remove nut -5- and bolts -3-.
3. Bolt
   • 23 Nm
4. Internally threaded pop rivet
5. Nut
   • 10 Nm
6. Special bolt
   • Do not remove for brace removal.
   • Torque, refer to [For engine(s) CETA, CCTA] Specifications or to [For engine(s) CDMA] Specifications or to [For engine(s) CBRA] Specifications or to [For engine(s) BPY] Specifications
