Bumper Bracket

Removing

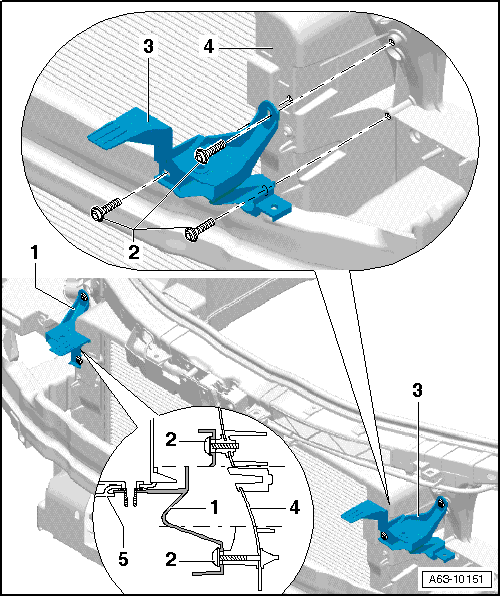

Fig 1: Identifying Bumper Bracket

Courtesy of AUDI OF AMERICA, LLC

1. Right bumper bracket
   • Remove bolts -2- from lock carrier -4-
2. Bolt
   • 5 Nm
3. Left bumper bracket
   • Remove bolts -2- from lock carrier -4-
4. Lock Carrier
