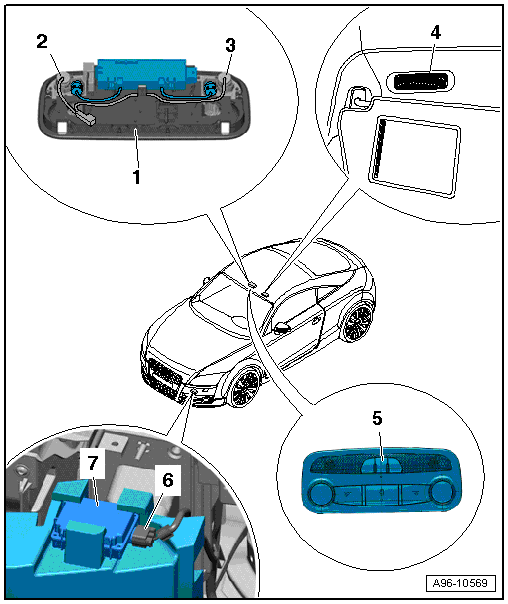

Roof Trim Lights And Switches Overview
- Interior Lights/Front Reading Lights
Interior lamp/reading lamp
- Removing and installing, refer to FRONT INTERIOR LAMP/READING LAMP .
Bulb for interior lamp/reading lamp.
- Front interior lamp -W1-
- Front passenger map/reading lamp -W13-
- Driver map/reading lamp -W19-
- Replacing, refer to INTERIOR LAMP/READING LAMP BULBS -W1- / -W13- / -W19- .
LED for interior lamp/reading lamp
- Replacing, refer to FRONT INTERIOR LAMP/READING LAMP LED .
- Removing and installing, refer to FRONT INTERIOR LAMP/READING LAMP .
- Right Microphone
- Removing and installing, refer to Removal and Installation .
- Left Microphone
- Removing and installing, refer to Removal and Installation .
- Vanity Mirror Illumination -L31-
- Coupe only
- Removing and installing, refer to VANITY MIRROR ILLUMINATION, COUPE -L31- .
- Garage Door Opener Control Head -E284-
- Removing and installing, refer to GARAGE DOOR OPENER CONTROL HEAD -E284- .
- Electrical Connector
- Garage Door Opener Control Module -J530-
- Removing and installing, refer to GARAGE DOOR OPENER CONTROL MODULE -J530- .
