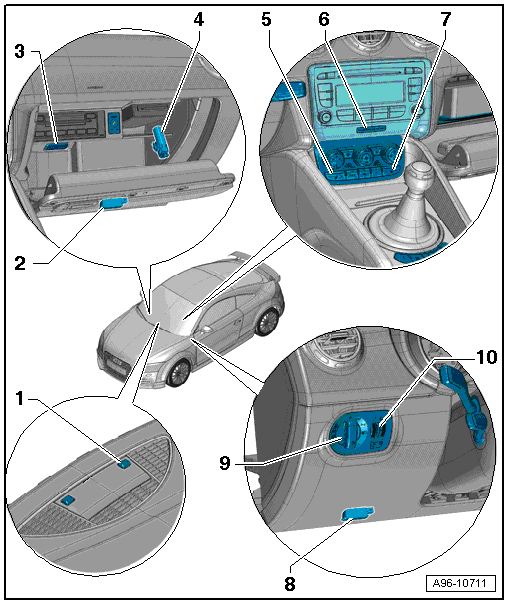

Instrument Panel Lights And Switches Overview
- Central Locking -SAFE- Indicator Lamp -K133-
- Removing and installing, refer to CENTRAL LOCKING -SAFE- INDICATOR LAMP -K133- .
- Right Front Footwell Illumination Bulb -L152-
- Removing and installing, refer to FRONT FOOTWELL ILLUMINATION BULB -L151- / -L152- .
- Glove Compartment Lamp -W6-
- Removing and installing, refer to GLOVE COMPARTMENT LAMP -W6- .
- Glove Compartment Lamp Switch -E26-
- Removing and installing, refer to GLOVE COMPARTMENT LAMP SWITCH -E26- .
- Heated Driver Seat Adjuster -E94-
- Integrated in the Climatronic control module -J255-. Cannot be replaced separately if faulty.
- For replacing the Climatronic control module -J255-, refer to [For engine(s) BPY, CETA, CCTA, CDMA, CEPB] Removal and Installation .
- Front Passenger Airbag Disabled Indicator Lamp -K145-
- Removing and installing, refer to FRONT PASSENGER AIRBAG -DISABLED- INDICATOR LAMP -K145- .
- Front Passenger Heated Seat Adjuster -E95-
- Integrated in the Climatronic control module -J255-. Cannot be replaced separately if faulty.
- For replacing the Climatronic control module -J255-, refer to [For engine(s) BPY, CETA, CCTA, CDMA, CEPB] Removal and Installation .
- Left Front Footwell Illumination -L151-
- Removing and installing, refer to FRONT FOOTWELL ILLUMINATION BULB -L151- / -L152- .
- Headlamp Switch -E1-
- Removing and installing, refer to LIGHT SWITCH -E1- WITH E20/E102/E579 .
- Instrument Panel Illumination Dimmer Switch -E20-
- Depending on the date of manufacture, with Headlamp range control adjuster -E102-, Daytime running lamps disable switch -E579-.
- Removing and installing, refer to INSTRUMENT PANEL DIMMER SWITCH -E20-, HEADLAMP ADJUSTER -E102-, DAYTIME RUNNING LAMP DISABLE SWITCH -E579- .
