Front Door Lights And Switches Overview

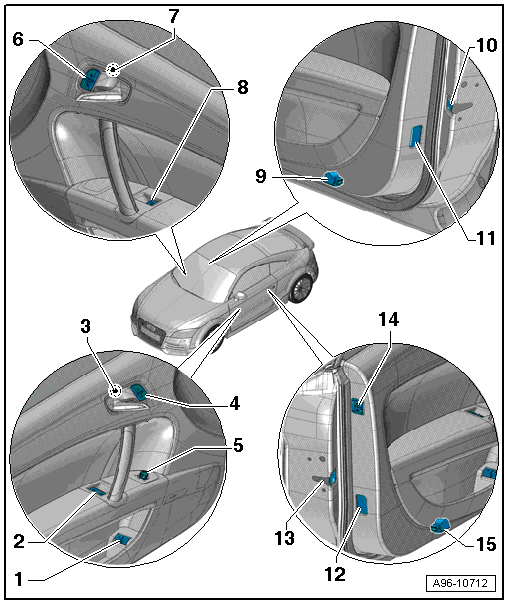

Fig 1: Front Door Lights And Switches Overview
GWWA96-10712Courtesy of AUDI OF AMERICA, LLC
  1. Rear Lid Remote Control Lock Switch -E233- / Fuel Tank Lid Unlock Button -E319-
  2. Power Window Control Head In Driver Door -E512-
    • With Left Front Window Regulator Switch -E40- and Driver Right Front Window Regulator Switch -E81-.
    • Window regulator switch, removing and installing, refer to WINDOW REGULATOR SWITCHES -E512- / -E107- .
  3. Door Opener Illumination Bulb, Driver Side -L146-
  4. Driver Interior Locking Button -E308-
  5. Mirror Adjustment Switch -E43- or Mirror (with fold-away function) Switch -E168-
  6. Front Passenger Interior Locking Button -E309-
  7. Door Opener Illumination Bulb, Front Passenger Side -L147-
  8. Front Passenger Door Window Regulator Switch -E107-
  9. Right Front Entry Lamp -W32-
  10. Front Passenger Door Contact Switch -F3-
    • Integrated in the door lock. Cannot be replaced separately if faulty.
    • For replacing the door lock, refer to Description and Operation .
  11. Front Passenger Door Warning Lamp -W36-
  12. Driver Door Warning Lamp -W30-
  13. Driver Door Contact Switch -F2-
    • Integrated in the door lock. Cannot be replaced separately if faulty.
    • For replacing the door lock, refer to Description and Operation .
  14. Passenger Compartment Monitoring Switch -E183- /Alarm System Deactivation Switch -E217-.
  15. Left Front Entry Light -W31-
