Seat Frame Assembly Overview

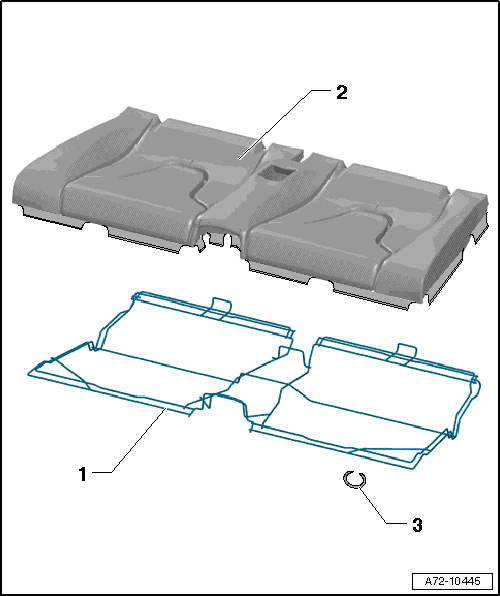

Fig 1: Seat Frame Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Seat frame
- Removing and Installing, refer to SEAT FRAME
Cover with upholstery
- Do not separate from one another when removing seat frame
Cushion clamp
- Quantity: 48
- Replacing
- Install in same location as before removal
  WARNING:
  Ends of upholstery clips must face in direction of upholstery after installing and must be bent correctly. Otherwise, there is a risk of injury.
