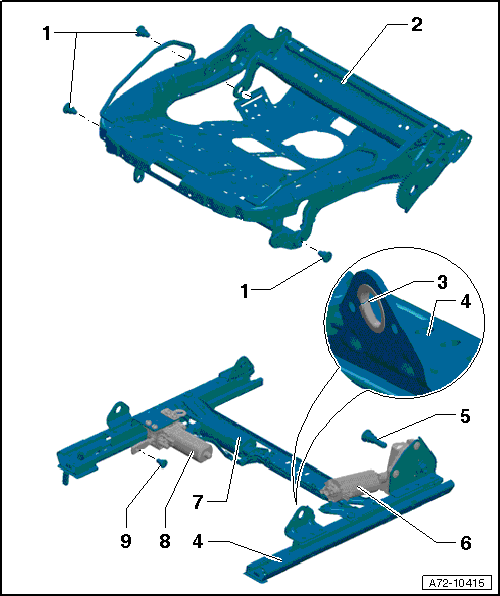

Seat Pan Assembly Overview
NOTE:
- The upper and lower seat pan frames can be separated and replaced individually on a power front seat.
- When removing seat pan, ensure bushings in bearing points (upper and lower frame threaded connection) are not damaged. These bushings cannot be replaced with workshop materials.
- Screw, self-locking
- 29 Nm
- Quantity: 3
- Replacing
- Threaded holes for screws must always be cleaned (for example, with thread cutter)
- Upper seat pan frame
- Removing and Installing, refer to SEAT PAN, DISASSEMBLING AND ASSEMBLING
- Bushing
- Inserted in all bracket locations
- Cannot be replaced with workshop materials
- If the bushing is damaged, assembly part must be replaced
- Lower seat pan frame
- Removing and Installing, refer to SEAT PAN, DISASSEMBLING AND ASSEMBLING
- Bolt
- 27 Nm
- Always replace if removed
- Before installing new bolts, clean threads on seat pan nuts

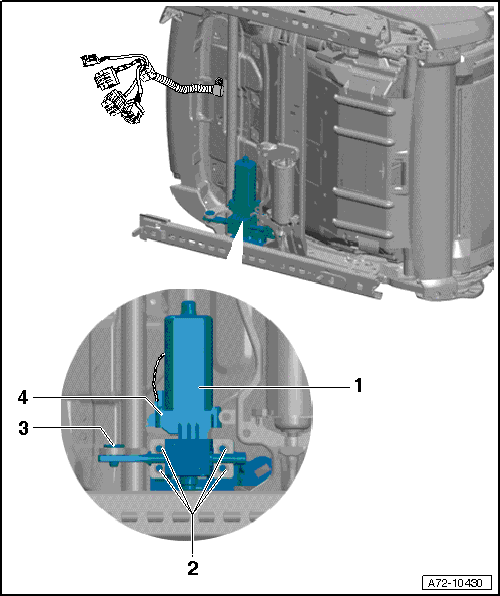

- Driver Seat Height Adjustment Motor -V245- or Front Passenger's Seat Height Adjustment Motor -V246-
- Removing and Installing, refer to SEAT HEIGHT ADJUSTMENT MOTOR V245 AND V246
- Seat forward/back adjustment motor -V288-
- Cannot be removed and installed with workshop materials
- Stays on the lower seat pan frame; refer to item 4
- Driver seat angle adjustment motor -V243- or front passenger seat angle adjustment motor -V244-
- Removing and Installing, refer to DRIVER SEAT ANGLE ADJUSTMENT MOTOR V243/V244
- Screw, self-locking
- For the correct tightening specifications, refer to Figure
- Replacing
- Threaded holes for screws must always be cleaned (for example, with thread cutter)
