Seat Forward/Back Adjustment Motor V288 Assembly Overview

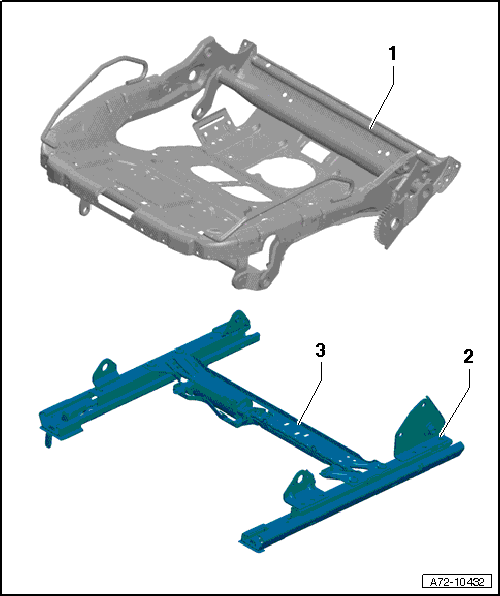

Fig 1: Seat Forward/Back Adjustment Motor V288 Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Upper seat pan frame
   • Separate the seat pan upper and lower frames and assemble. Refer to SEAT PAN, DISASSEMBLING AND ASSEMBLING
2. Lower seat pan frame
   • Separate the seat pan upper and lower frames and assemble. Refer to SEAT PAN, DISASSEMBLING AND ASSEMBLING
3. Seat forward/back adjustment motor -V288-
   • Removing and Installing, refer to SEAT FORWARD/BACK ADJUSTMENT MOTOR V288
