Seat Pan Assembly Overview

NOTE:
  • Upper and lower seat pan frames must not be separated.
  • If damaged, replace the entire seat pan.

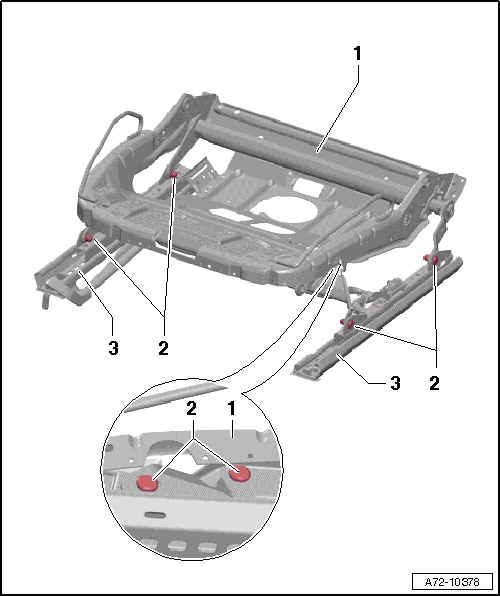

Fig 1: Seat Pan Assembly Overview
GWWA72-10378Courtesy of AUDI OF AMERICA, LLC
  1. Upper seat pan frame
    • Do not separate from lower seat pan frame
    • Removing and Installing, refer to SEAT PAN
  2. Shear tension bolts with self-locking collar
    • Quantity: 6
    • Must not be drilled out
  3. Lower seat pan frame
    • Do not separate from upper frame
    • Removing and Installing, refer to SEAT PAN
