Backrest Lock Actuating Link Assembly Overview

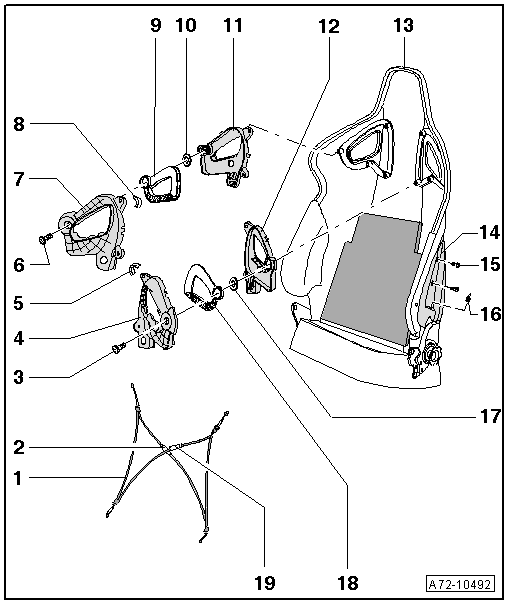

Fig 1: Backrest Lock Actuating Link Component Overview

Courtesy of AUDI OF AMERICA, LLC

1. Backrest lock actuating link
   • Removing and Installing, refer to BACKREST LOCK ACTUATING LINK
2. Actuating link adjuster
   • Left
3. Bolt
   • Tightening specification 2.5 Nm
   • Replace with locking compound
   • Locking compound
4. Left release lever cover
5. Edge protection
6. Bolt
   • Tightening specification 2.5 Nm
   • Replace with locking compound
   • Locking compound
7. Right release lever cover
8. Edge protection
9. Right backrest lock release lever
   • Removing and Installing, refer to BACKREST LOCK ACTUATING LINK
10. Plastic disc
    • For release lever
11. Right release lever mount
12. Left release lever mount
13. Backrest frame
14. Backrest frame mount
15. Bolt
    • Tightening specification 22 Nm
    • Replace with locking compound
    • Locking compound
16. Pop rivet
    • 6 mm (steel)
17. Plastic washer
    • For release lever
18. Left backrest lock release lever
    • Removing and Installing, refer to BACKREST LOCK ACTUATING LINK
19. Actuating link adjuster
    • Right
