66 Exterior Equipment: Specifications: Lettering
CAUTION:
- The adhesive surfaces on the body must be free of dirt and grease.
- Clean the adhesive surfaces using cleaning solution D 009 401 04.
- Warm the adhesive surfaces and lettering to approximately 104°F (40°C) using a hot air blower.
- After assembly, press the lettering with the T10314.
Special tools and workshop equipment required
- Roller T10314
- Hot air gun V.A.G 1416

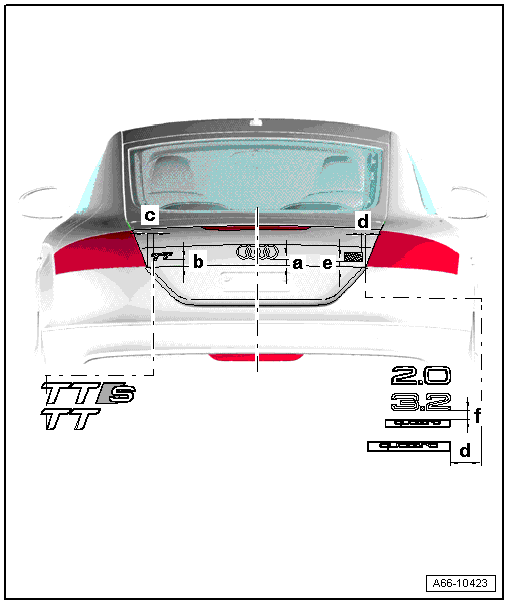

Rear Lid Dimensions
- Dimension -a- = 33 mm
- Dimension -b- = 22 mm
- Dimension -c- = 27 mm
- Dimension -d- = 27 mm
- Dimension -e- = 17.5 mm
- Dimension -e- = 22 mm
- Dimension -f- = 4 mm

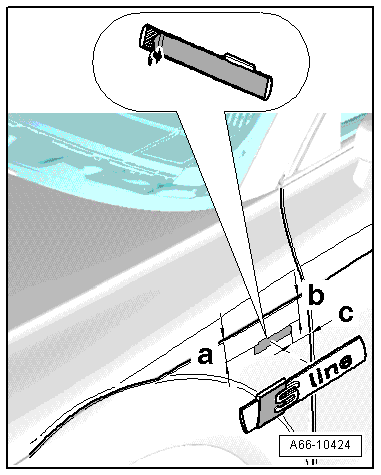

Fender Dimensions
-- Pull off the protective film -arrow- prior to installation.
- Dimension -a- = 41mm
- Dimension -b- = 42 mm
- Dimension -c- = 34 mm
