Satellite Radio Connectors, Through 10/06

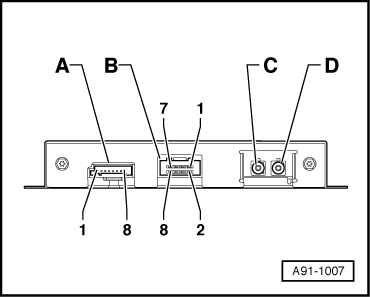

Fig 1: Identifying 8-Pin Harness Connector And Antenna Connection For Satellite Tuner

Courtesy of AUDI OF AMERICA, LLC

A - Black 8-pin connector (T8n)

B - Black 8-pin connector (T8m)

C - Ter connection (brown) from antenna splitter

D - Sat connection (green) from antenna splitter

NOTE:

Unlisted connector terminals are not assigned.

Fig 2: Identifying 8-Pin Harness Connector And Antenna Connection For Satellite Tuner

Courtesy of AUDI OF AMERICA, LLC

1 - CAN-Bus High (Infotainment)

2 - CAN-Bus Low (Infotainment)

3 - Left signal from CD changer/iPod baseplate

4 - Right signal from CD changer/iPod baseplate

5 - Signal ground to radio/navigation system with CD drive control module

6 - Left signal to radio/navigation system with CD drive control module

7 - Right signal to radio/navigation system with CD drive control module

8 - Signal ground from CD changer/iPod baseplate

Fig 3: Identifying 8-Pin Harness Connector And Antenna Connection For Satellite Tuner

Courtesy of AUDI OF AMERICA, LLC

1 - Terminal 31

2 - Terminal 30
