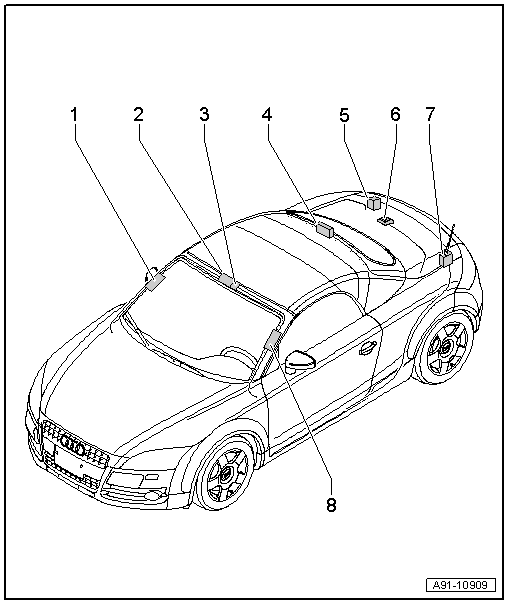

Antennas, Overview
- TV Antenna 2 -R56-
- Removing and installing through MY 2007, refer to TV ANTENNA 2, THROUGH MY 2007
- Removing and installing from MY 2008, refer to TV ANTENNA 2, FROM MY 2008
- Removing and installing, USA version, refer to TV ANTENNA 2
- Telephone antenna -R65-
- Removing and installing, refer to NAVIGATION SYSTEM ANTENNA/TELEPHONE ANTENNA
- Navigation System Antenna -R50-
- Removing and installing, refer to NAVIGATION SYSTEM ANTENNA/TELEPHONE ANTENNA
- Antenna Selection Control Module -J515-
- Only with RNS-E with TV
- Connectors. Refer to, refer to ANTENNA SELECTION CONTROL MODULE CONNECTIONS .
- Removing and installing, refer to ANTENNA SELECTION CONTROL MODULE
- Antenna Amplifier 2 -R111-
- Connectors, refer to ANTENNA AMPLIFIER 2 CONNECTIONS .
- Removing and installing, refer to ANTENNA AMPLIFIER 2
- Satellite Antenna -R170- (USA only)
- Removing and installing, refer to SATELLITE ANTENNA
- Antenna Amplifier -R24-
- Connectors, refer to ANTENNA AMPLIFIER CONNECTIONS .
- Removing and installing, refer to ANTENNA AMPLIFIER
- TV Antenna 3 -R57-
- Removing and installing through MY 2007, refer to TV ANTENNA 2, THROUGH MY 2007
- Removing and installing from MY 2008, refer to TV ANTENNA 2, FROM MY 2008
- Removing and installing, USA version, refer to TV ANTENNA 2
