Cigarette Lighter, 12V Outlet Overview

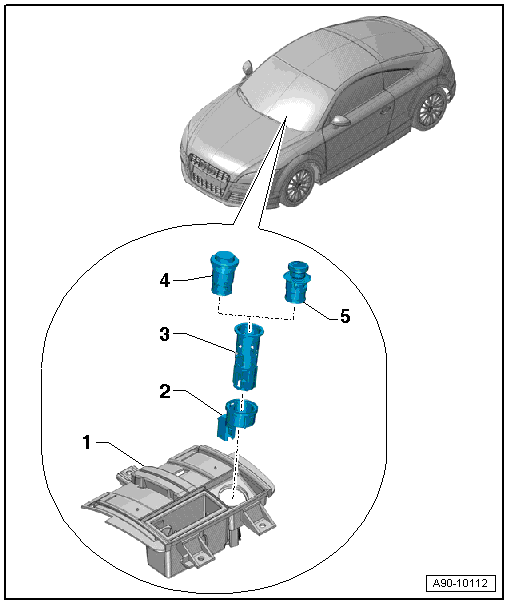

Fig 1: Identifying Cigarette Lighter, 12V Outlet
GWWA90-10112Courtesy of AUDI OF AMERICA, LLC
  1. Front Ashtray
  2. Cigarette Lighter Illumination -L28-
    • Is a part of the cigarette lighter -U1-.
  3. Cigarette Lighter -U1-
  4. Cigarette Lighter
  5. Blind Cover
