Vibration Damper Sealing Ring, Replacing: Procedure

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of

-- Remove the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .

The Tensioning Pins T10531/2 is installed.

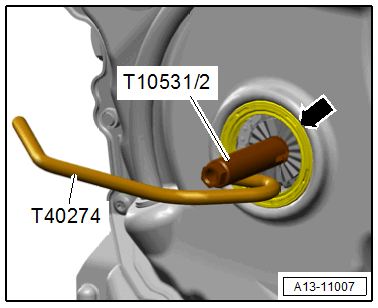

-- Remove the seal -arrow- with the -T40274-.

-- Clean the contact and sealing surface.

-- Push the seal -arrow- on the -T10354-.

The closed side of the seal points to the -T10354-.

Courtesy of

-- Push the seal -arrow- with the -T10354- on the -T10531/2- and place on the lower timing chain cover.

Courtesy of

-- Additionally attach the -T10375- and tighten the -T10531/4-.

-- Drive the seal in all the way using the -T10354-.

Courtesy of

Further installation is performed in reverse order of removal, while noting the following:

Replace the bolt with O-ring for the vibration damper after removal.

-- Install the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
