Compression, Checking: Notes
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Spark Plug Removal Tool - 3122B-
- Compression Tester Kit - VAG1763-
- Compression Tester Kit - Adapter - VAG1381/1-
Test Sequence
- Engine oil temperature at least 30° (86°F).
- Battery voltage at least 12.7 V.
- Remove the ignition coils with power output stages. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .

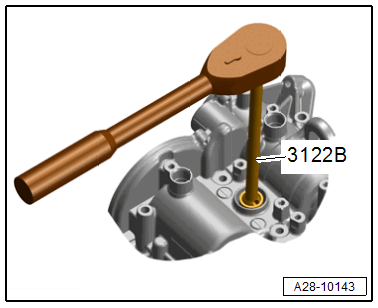

- Remove the spark plugs using the -3122B-.
- Check the compression using the -VAG1763-, -VAG1381/1- and -VAG1381/5A-. Information on using the tester. Refer to the Operating Instructions.
- The help of a second technician is necessary for the following step.
- Have a second technician operate the starter until the tester no longer shows an increase in pressure.
| Compression Pressure | Pressure |
|---|---|
| New | 11.0 to 14.0 bar (159.54 to 203.05 psi) |
| Wear limit | 7.0 bar (101.52 psi) |
| Maximum difference between cylinders | 3.0 bar (43.51 psi) |
