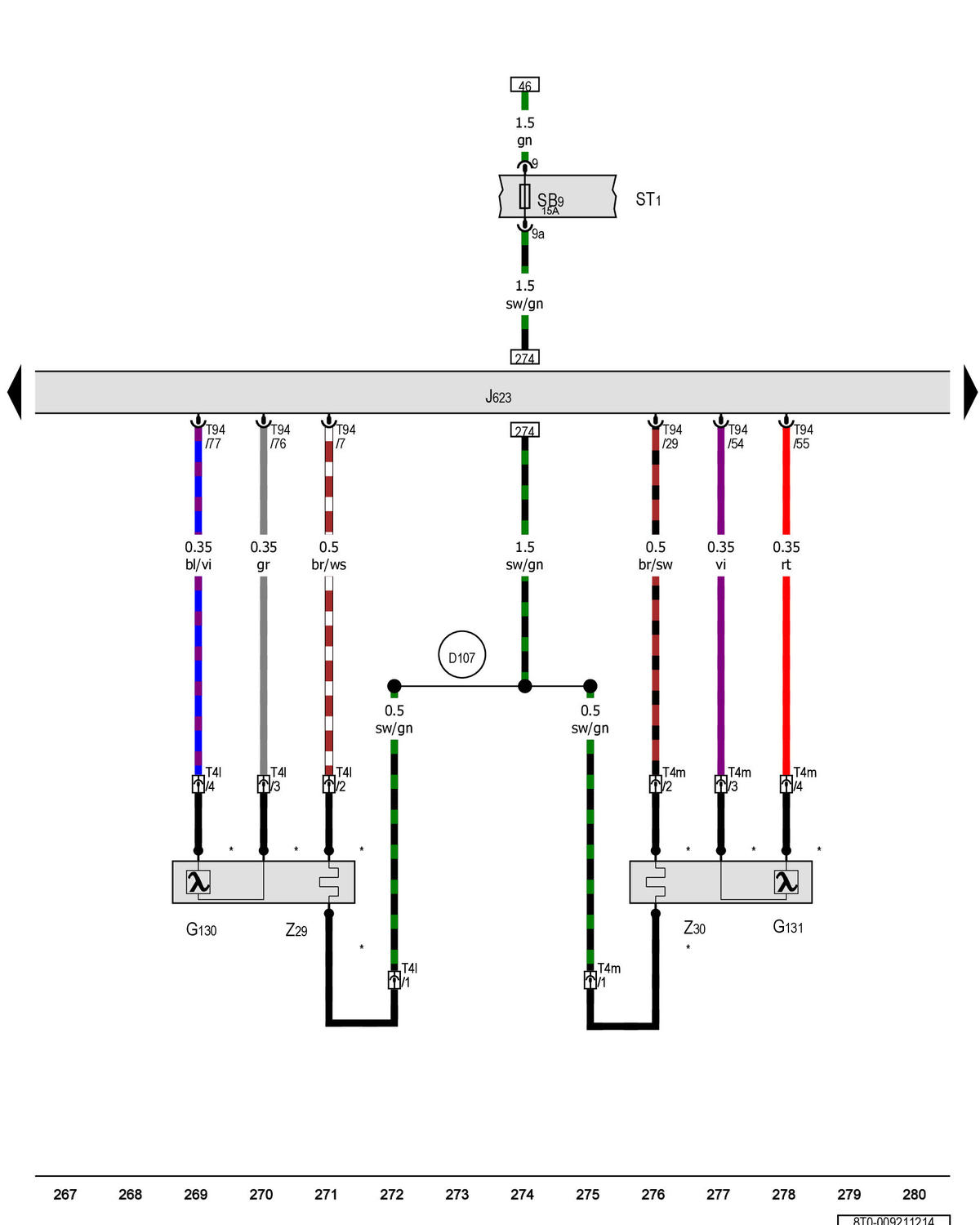

Oxygen Sensor After Three Way Catalytic Converter, Oxygen Sensor 2 After Catalytic Converter, Engine Control Module: Notes

GWW8T0-009211214

Courtesy of AUDI OF AMERICA, LLC
