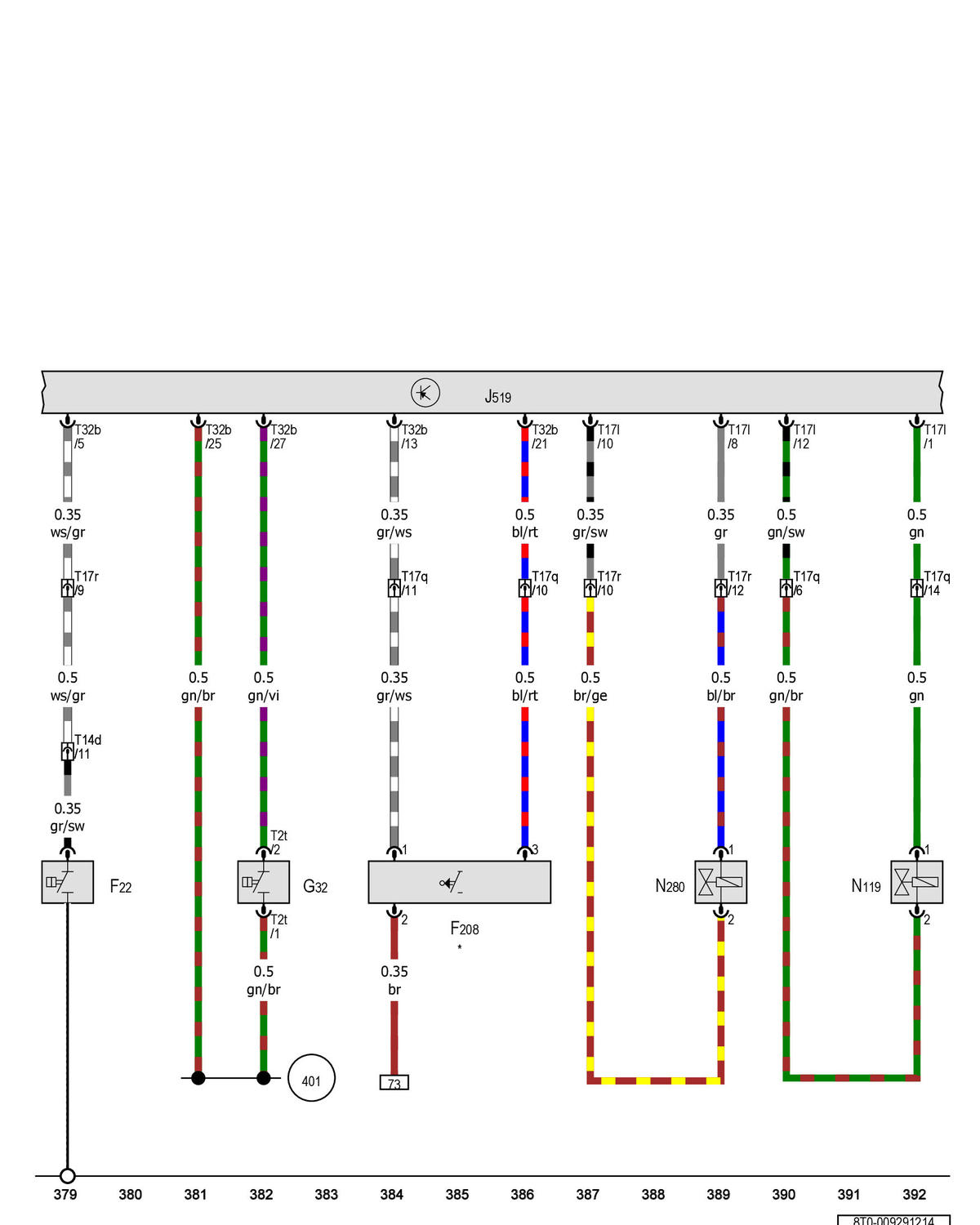

Oil Pressure Switch, Transmission Range Gear Recognition Switch, Engine Coolant Level Sensor, Vehicle Electrical Control Module System, SERVOTRONIC Solenoid Valve, A/C Compressor Regulator Valve: Notes

GWW8T0-009291214Courtesy of AUDI OF AMERICA, LLC
