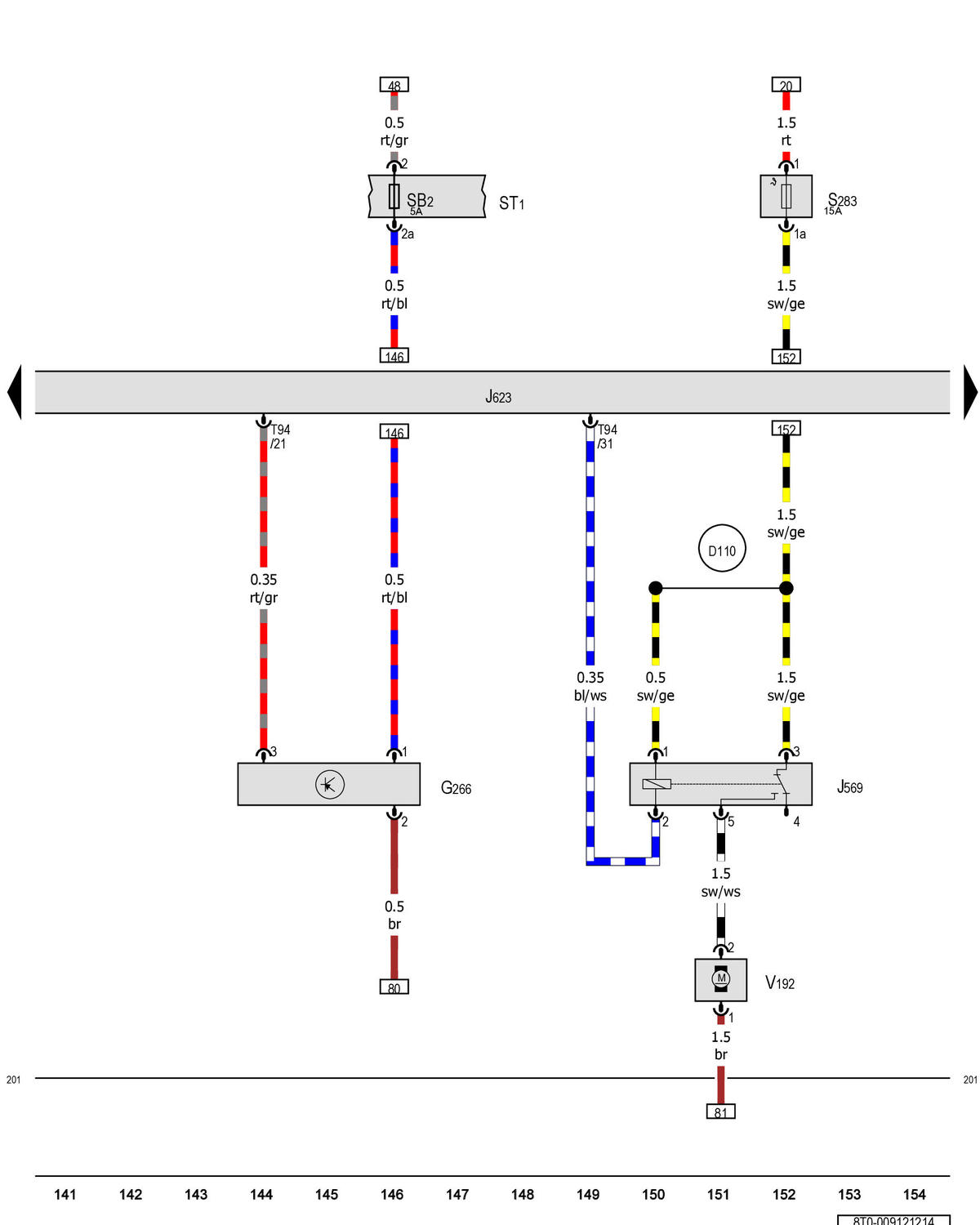

Oil Level Thermal Sensor, Brake Booster Relay, Engine Control Module, Brake System Vacuum Pump: Notes

GWW8T0-009121214

Courtesy of AUDI OF AMERICA, LLC
