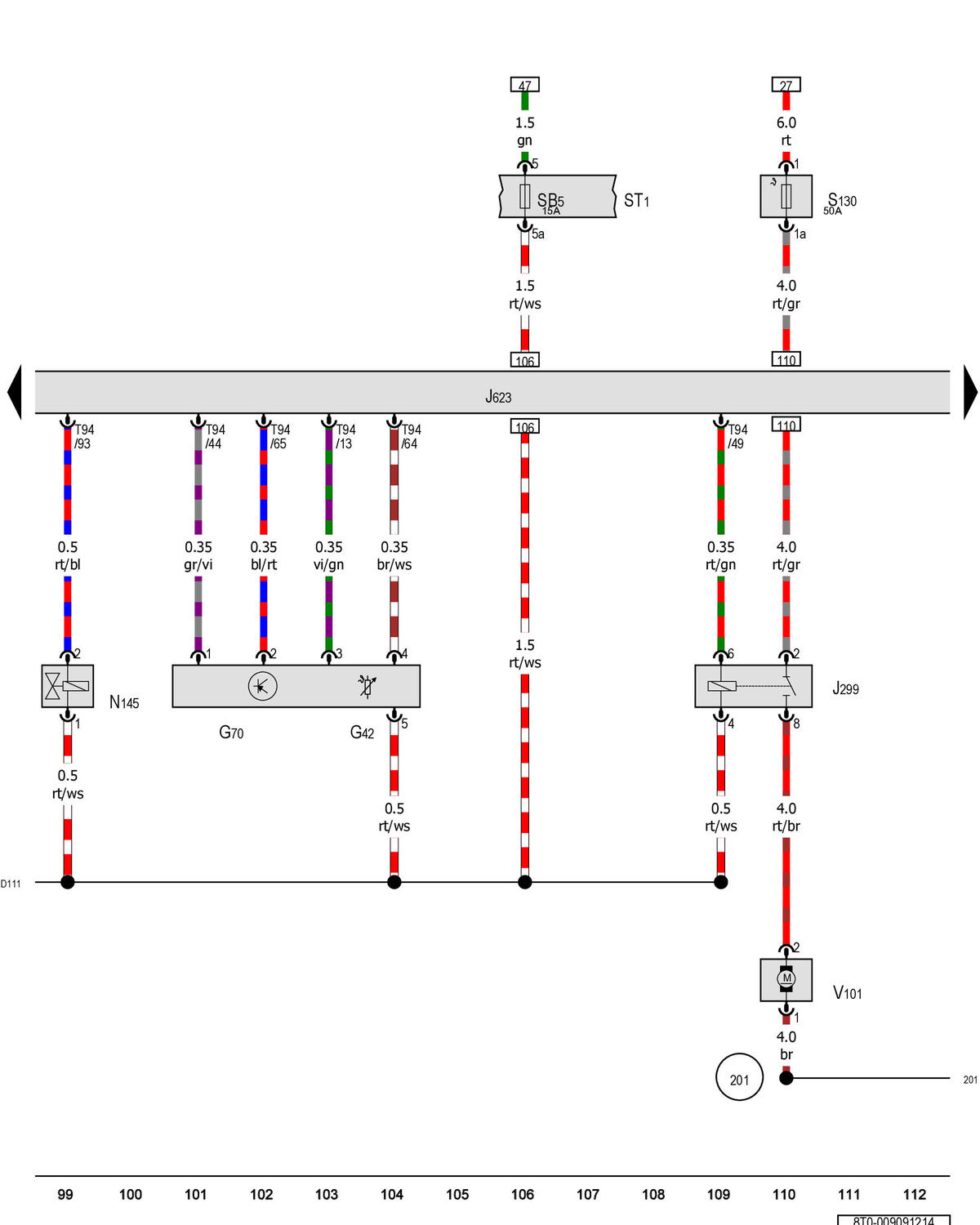

Mass Airflow Sensor, Secondary Air Injection Pump Relay, Engine Control Module, Right ELECTROHYDRAULIC Engine Mount Solenoid Valve, Secondary Air Injection Pump Motor: Notes

GWW8T0-009091214Courtesy of AUDI OF AMERICA, LLC
