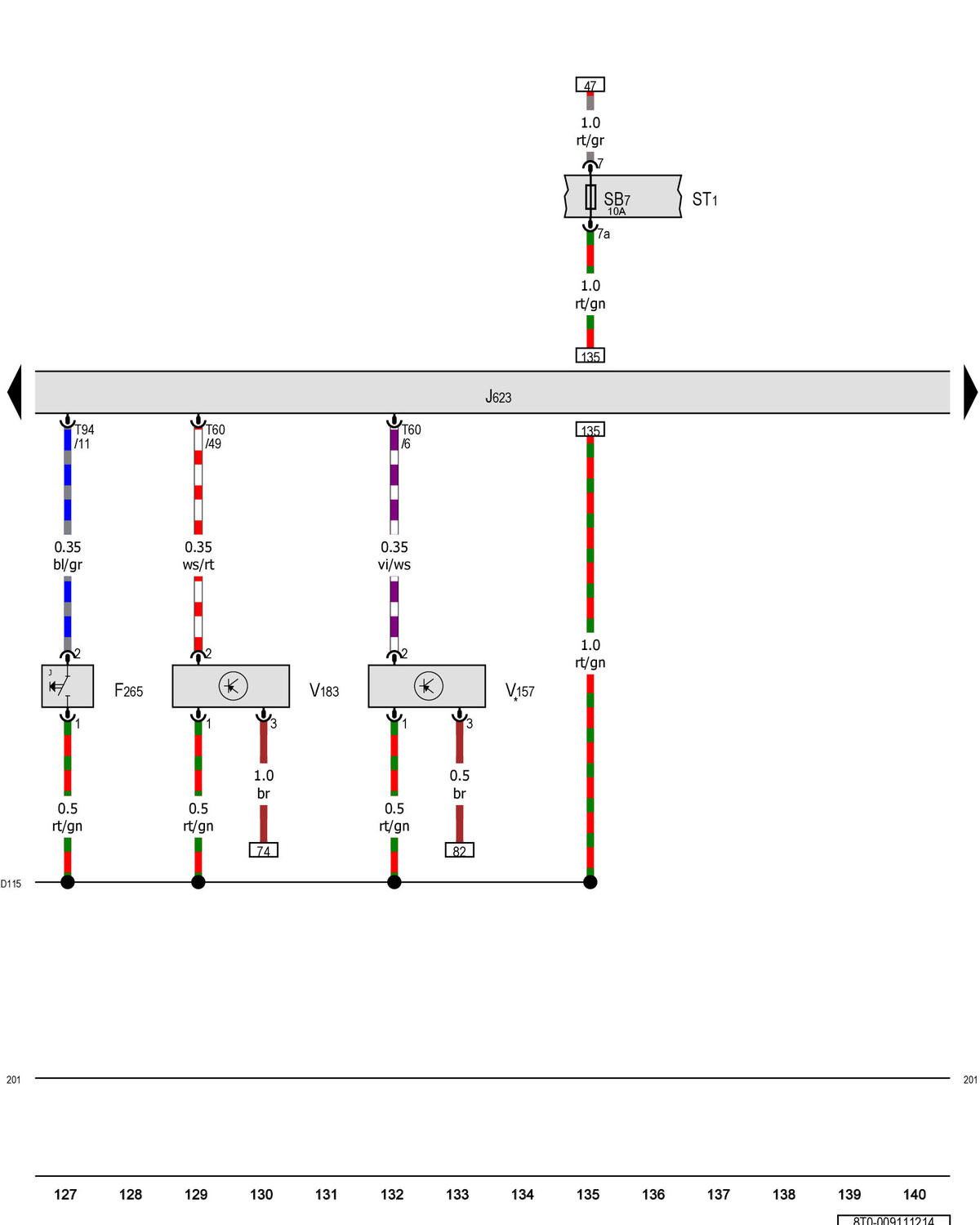

Map Controlled Engine Cooling Thermostat, Engine Control Module, Intake Flap Motor, Variable Intake Manifold Runner Motor: Notes

GWW8T0-009111214Courtesy of AUDI OF AMERICA, LLC
