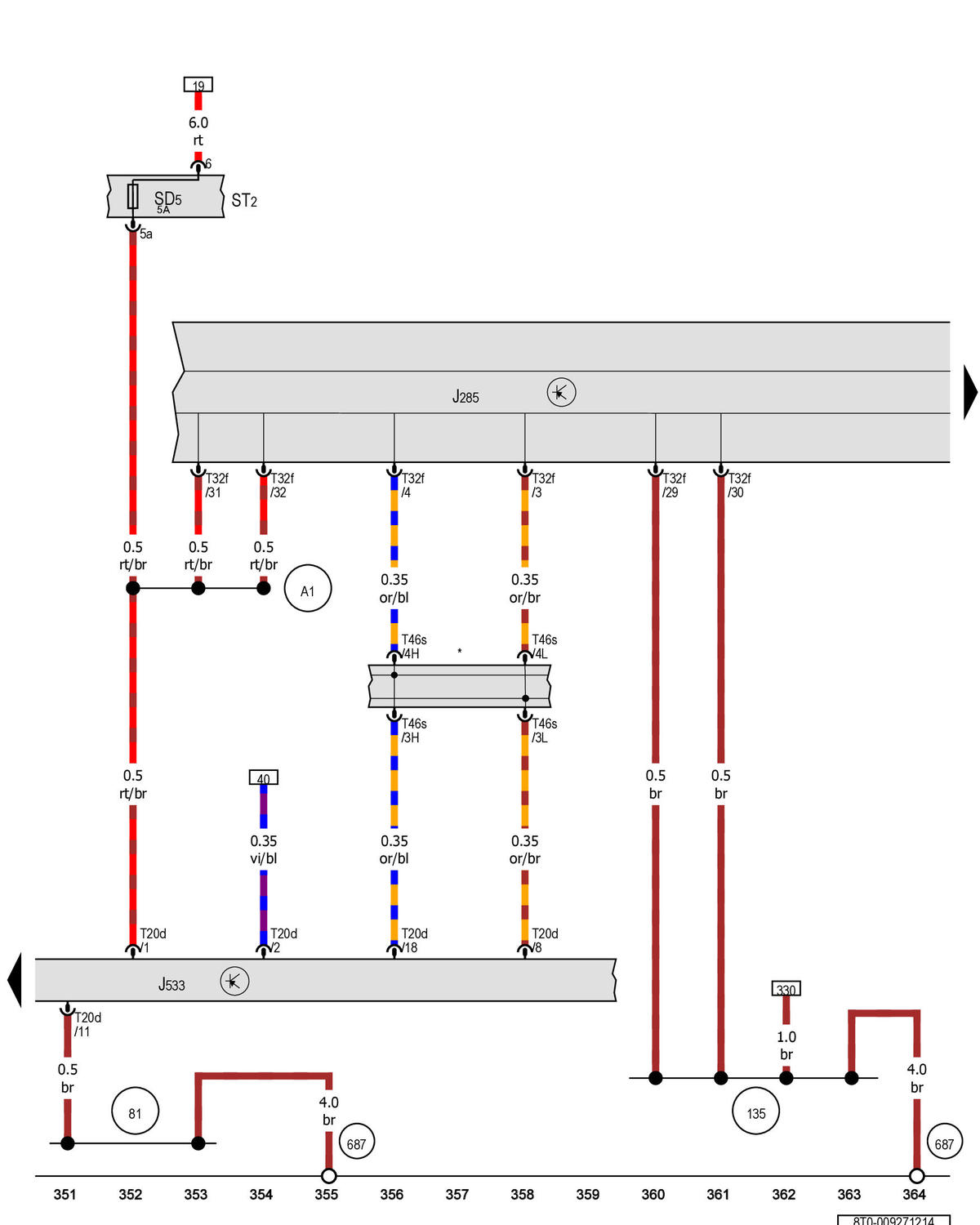

Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface: Notes

GWW8T0-009271214

Courtesy of AUDI OF AMERICA, LLC
