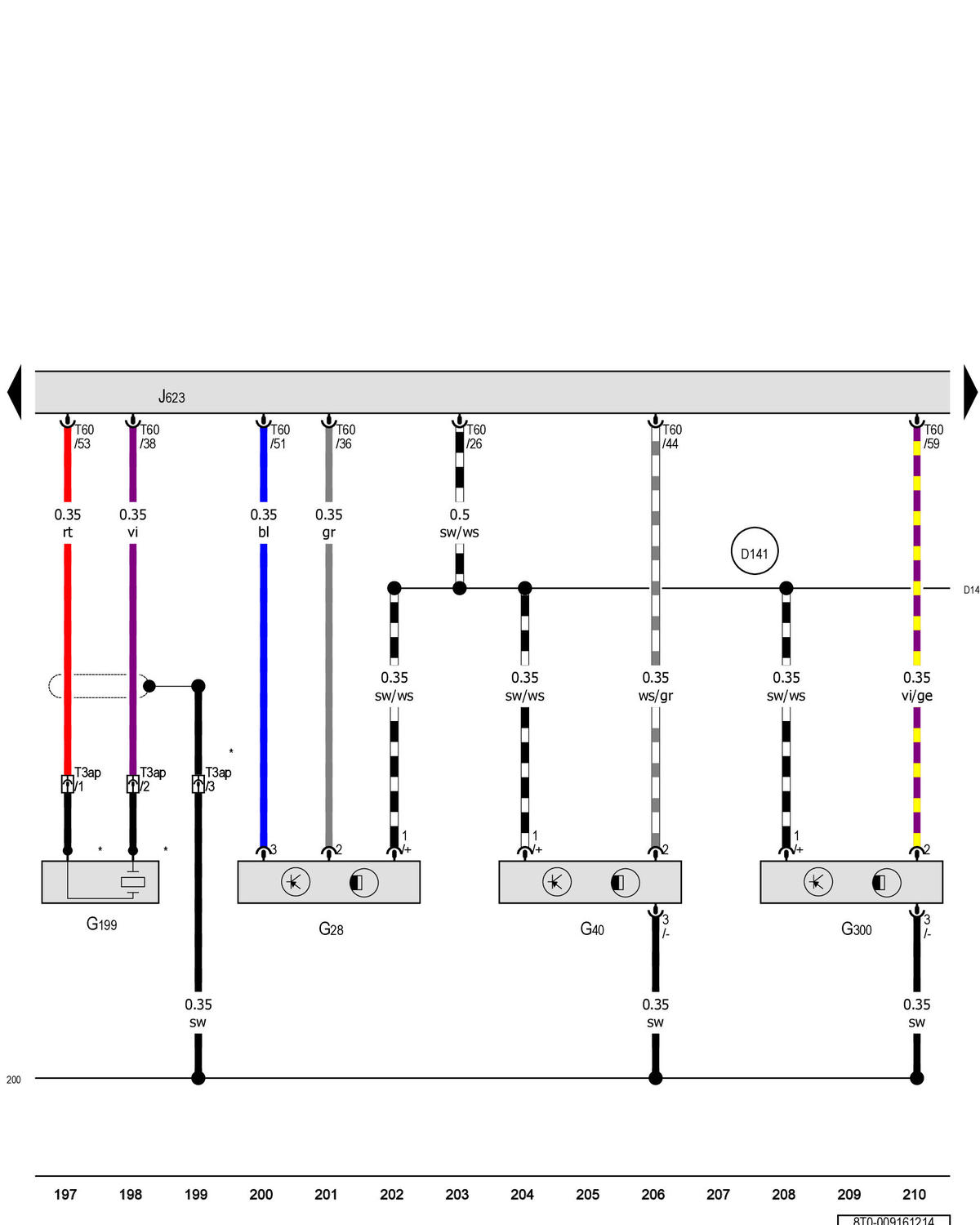

Engine Speed Sensor, Camshaft Position Sensor, Knock Sensor 4, Camshaft Position Sensor 3, Engine Control Module: Notes

GWW8T0-009161214

Courtesy of AUDI OF AMERICA, LLC
