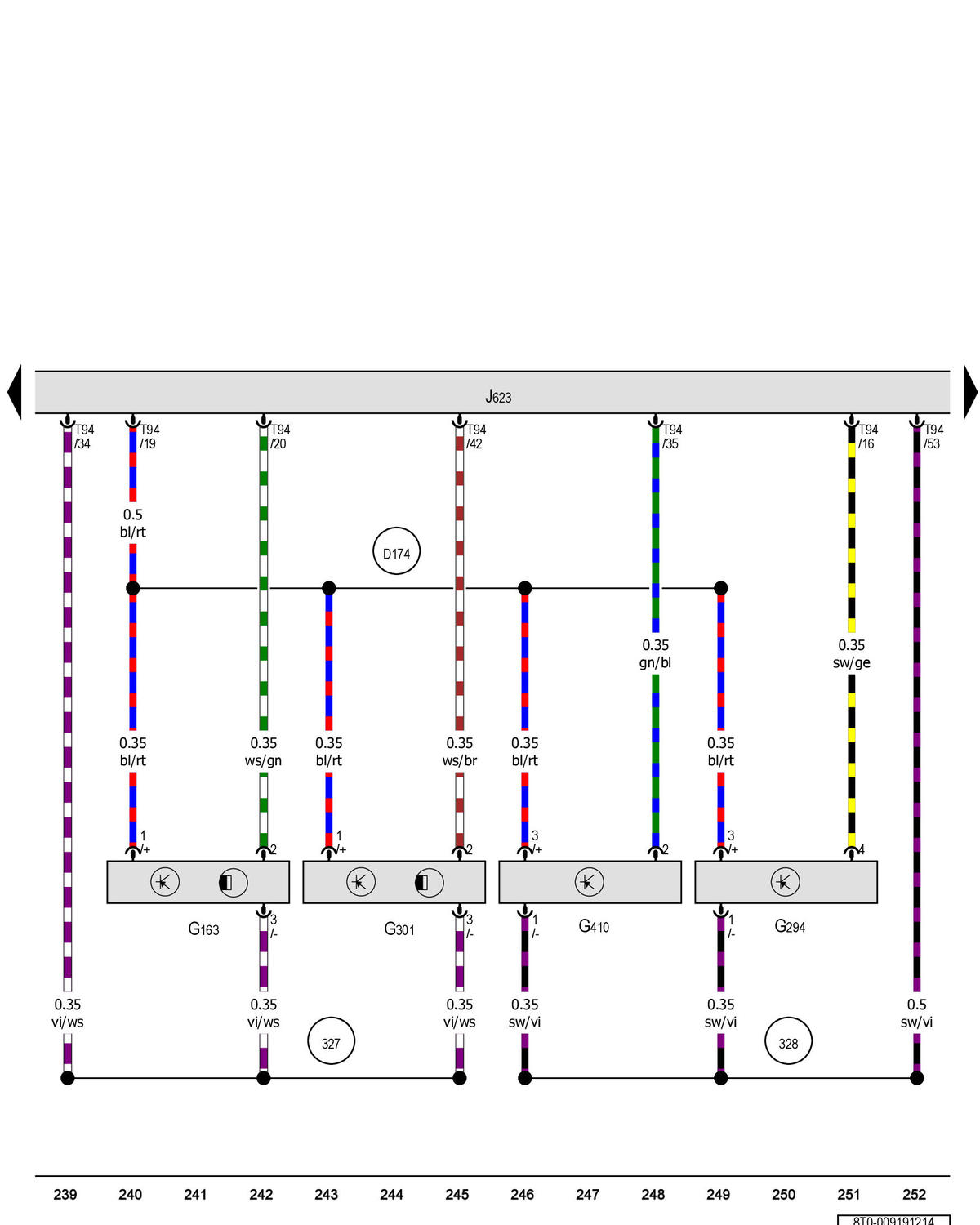

Camshaft Position Sensor 2, Brake Booster Pressure Sensor, Camshaft Position Sensor 4, Low Fuel Pressure Sensor, Engine Control Module: Notes

GWW8T0-009191214

Courtesy of AUDI OF AMERICA, LLC
